uPVC Window Hinge Egress Fire Escape Mila Friction Stay Pair

3 Review(s) Write a Review

£11.36

SKU:

PAIR_OF_FIRE_EGRESS_FRICTION_W.913

Priced and Sold in:

Pairs

Hinge Track Width:

18mm

Material:

Stainless Steel

Product Description
Product Reviews
Shipping & Returns

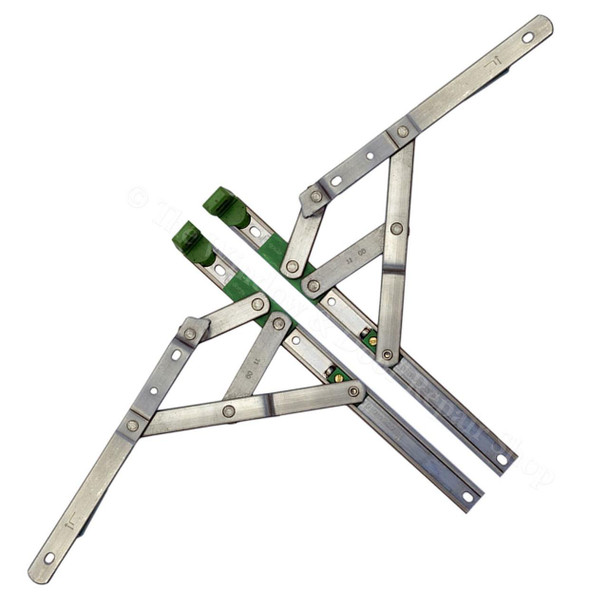

Mila Egress Fire Escape Friction Hinge Stay (Pair) Side Hung

For windows with the handle on the left or right hand side, these can be UPVC, aluminium or timber.

These special Fire Egress hinges will give you an easy escape route in the event of a fire when used correctly on a side hung window. The hinges (16") open to almost 90° (88° deg) for easy egress and allows casement windows (dependent upon size) to satisfy the egress requirements of Document B of the Building Regulations (the 10" hinge opens to 80°). For emergency egress any window should have an unobstructed openable area that is at least 0.33m square and at least 450mm high and 450mm wide.

Features:

Supplied in pairs
10" Hinge opens to 80°: 16" Hinge opens to 88° for easy fire escape
Allows casement windows (dependent upon size) to satisfy the egress requirements of Document B of the Building Regulations
Manufactured using high-grade Austenitic and Ferretic stainless steel
Improved weather sealing
Handed nylon end-cap for smooth operation and accurate location
BBA Approved
Available in both 13mm & 17mm stack heights to suit most common casement profiles
Standard 18mm track width
Fixing screws are NOT supplied

What's in the pack?

1 x Pair Fire Egress Side Hung Friction Window Hinges

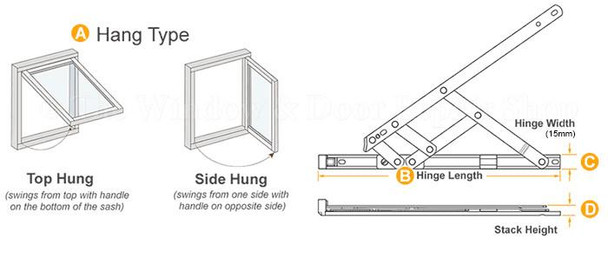

How should I measure my hinges?

A: First you need to establish the hanging type, do you require a top or side hung hinge? (N. B. These hinges are available in side hung only)

B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram showing where the hinge length measurements are taken from.

C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame. (Almost all window hinges will measure 18mm in width, but with windows that are very old the measurement could be 14mm and if this is the case this hinge will not unfortunately, fit.)

D: The final measurement that you need is the Stack Height, this measurement is the height of the hinge when closed, please see diagram. Stack heights come in two sizes 13mm or 17mm, so even if you are unsure you can usually calculate which is correct because of the 4mm difference.

Description	Size (")	Opening (°)	Width (mm)	Height (mm)	Weight (kg)
Side Hung	10	80	450	1300	12
Side Hung	16	88	700	1300	22

Write a Review

3 Reviews Hide Reviews Show Reviews

Excellent replacement hinges

5
Posted by Paul B on 1st May 2024

Very smooth hinges, compatible with Planet uPVC windows. The holes are in a different place so fresh fittings can be installed. Opens wide for escape use.
Fixed my window

5
Posted by Neil on 7th Jun 2021

Had a window which had a gap when closed. Was able to find the correct (egress) type hinge at JCP easily and pleasantly surprised that deliver to Northern Ireland was free. Item arrived quickly and fitted correctly to the frame. Action is much smoother than old hinge and there is no gap now so no draughts and a quieter room. Time will tell how this one wears but does seem decent quality. Was able to fit in around an hr and a half as a fussy DIY'er. Would use again.
Hinge Replacement

5
Posted by paul Hands on 29th Jun 2020

Ordered 2 with ease online on a Sunday evening arrived in post
Wednesday morning, fitted in place of previous 12" stays which
had rusted through at the bottom...also gave customer option
of using window as a fire escape as the sash now opens to
just shy of 90 degrees
