Upvc Door Handle 92PZ 92mm 122mm Screw Fixing Centres Lever/Lever Birmingham Hoppe

The Birmingham handle from Hoppe - beautiful clean lines and an elegant sculpting of these handles make them both attractive and exceptional value and they come complete with sprung handles and matching screws. For anyone in property maintenance, the Hoppe Birmingham offers great durability due to the integral frameworked chassis and this coupled with the contemporary style and a choices of beautiful finishes will always allow you to find a set that is pleasing to both the eye and your pocket.

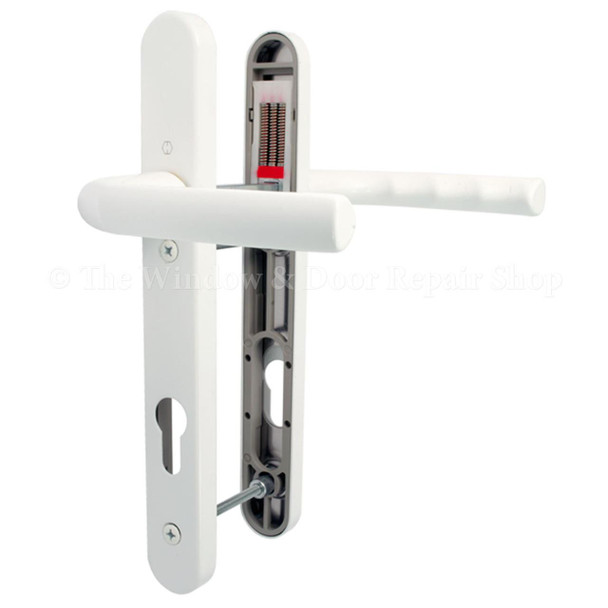

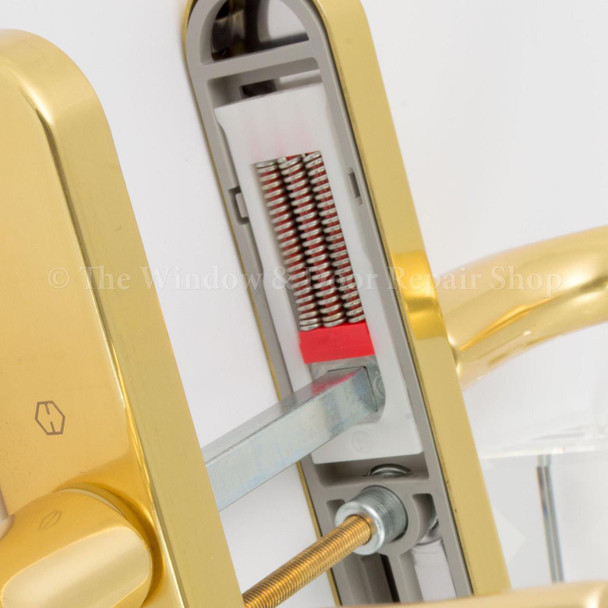

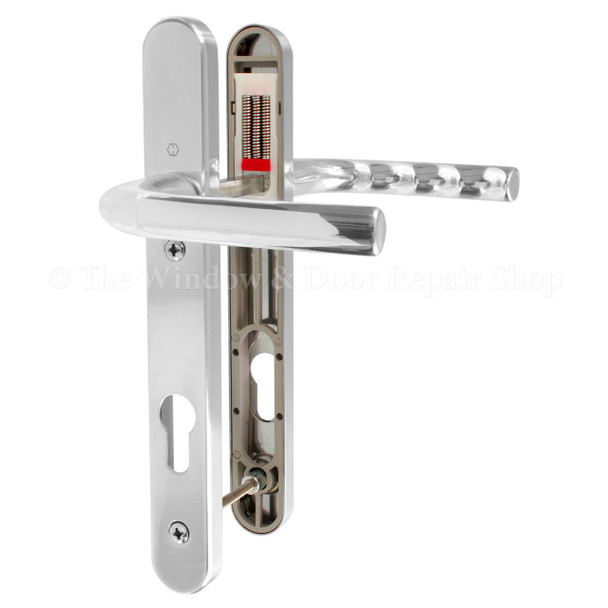

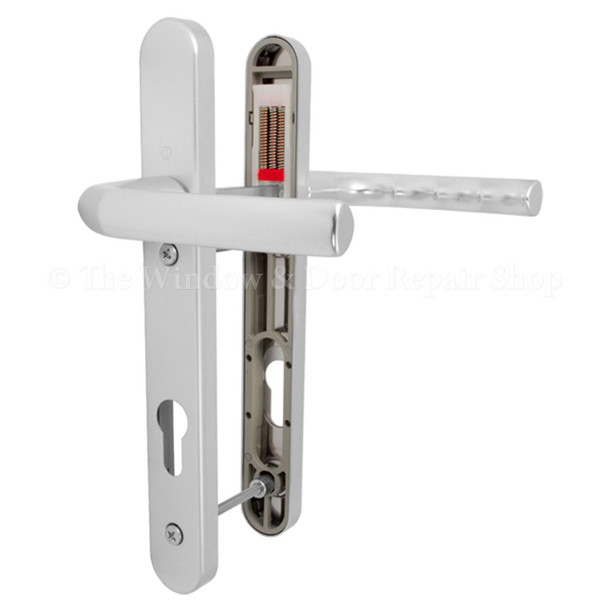

As we have come to expect, the Hoppe Birmingham door handle has been manufactured to an extremely high standard which offers outstanding product performance and value. The levers and backplate are manufactured in cast aluminium. This Sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassette is fitted over the spindle hole, ensuring that the handle is held at 90° with no sag. (Please note, due to the design of these handles only one spring cassette is required).

The Hoppe Birmingham Door handle set is designed to replace handles with 92mm cylinder centres (distance from centre of handle spindle to centre of barrel) a backplate length of 245mm and screw hole fixings of 122mm. The Sprung lever/lever handle set is for use with lift lever operated multipoint locking mechanisms with a 92mm PZ centre.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Supplied as a pair complete with spindle and matching screws
• Fully sprung with a spring cassette supplied
• Aluminium levers & backplate
• Fully reversible to fit both left or right hung doors

What's in the pack?

1 x Set of Hoppe Birmingham 92PZ Lever Door Handles

1 x Spring Cassette

1 x 8mm Spindle

2 x Matching Fixing Screws

Dimensions:

• PZ Centres: 92mm
• Backplate width: 30mm
• Backplate length: 245mm
• Lever length: 124mm
• Distance between screw hole centres: 122mm
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 122 mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

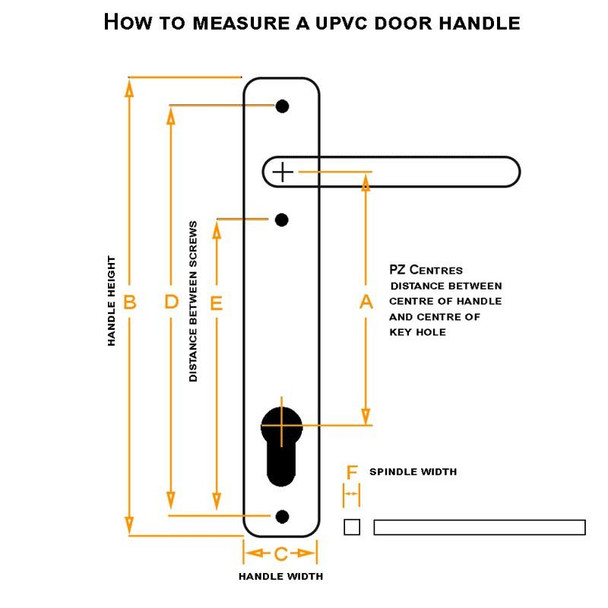

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
