TSS uPVC Door Handle 70mm 70PZ Ferco Sprung Lever Pair Set - 180mm Screw Centres

TSS uPVC Door Handle 70mm 70PZ Sprung Lever Pair Set - 180mm Screw Centres, Ferco Compatible

Professional-grade multipoint door handle engineered for Ferco lock compatibility and lasting performance.

TSS 70PZ Sprung Door Handle delivers exceptional reliability and durability for your uPVC doors. Specifically designed to fit Ferco 4.28, 5.28, and 6.35 multipoint door locks, this professional-grade handle set ensures smooth operation and long-term performance for your home security.

Featuring robust spring cassettes and precision engineering, this handle automatically returns to the perfect 90-degree position after use, maintaining both functionality and aesthetic appeal. The universal handing design makes it suitable for both left-hand and right-hand opening doors, whilst the colour-coordinated fixings provide a professional finish.

Key Benefits:

• Ferco Lock Compatibility – Specifically engineered to fit Ferco 4.28, 5.28, and 6.35 multipoint door locks

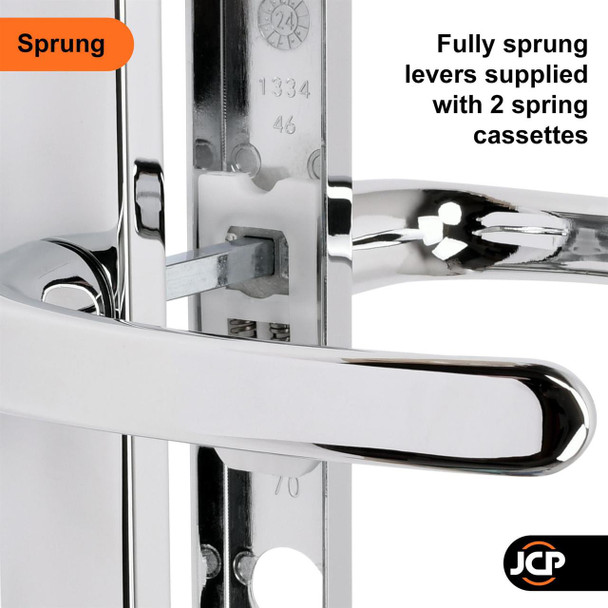

• Spring-Loaded Return – Built-in spring cassettes ensure handles return to 90-degree position for consistent operation
• Proven Durability – Cycle tested for over 50,000 operations, with premium finishes salt spray tested for 240+ hours
• Professional Installation – Complete with spindle, colour-coordinated screws, and spring cassettes for easy fitting
• Universal Handing – Non-handed design suits both left and right-hand opening doors
• Multiple Finishes Available – Choose from white, black, silver, polished chrome, or polished brass to match your door style
• Precise Measurements – 70mm PZ centres and 180mm screw centres for reliable fitment
• Complete Pair Set – Supplied as matching pair with all necessary fixings included

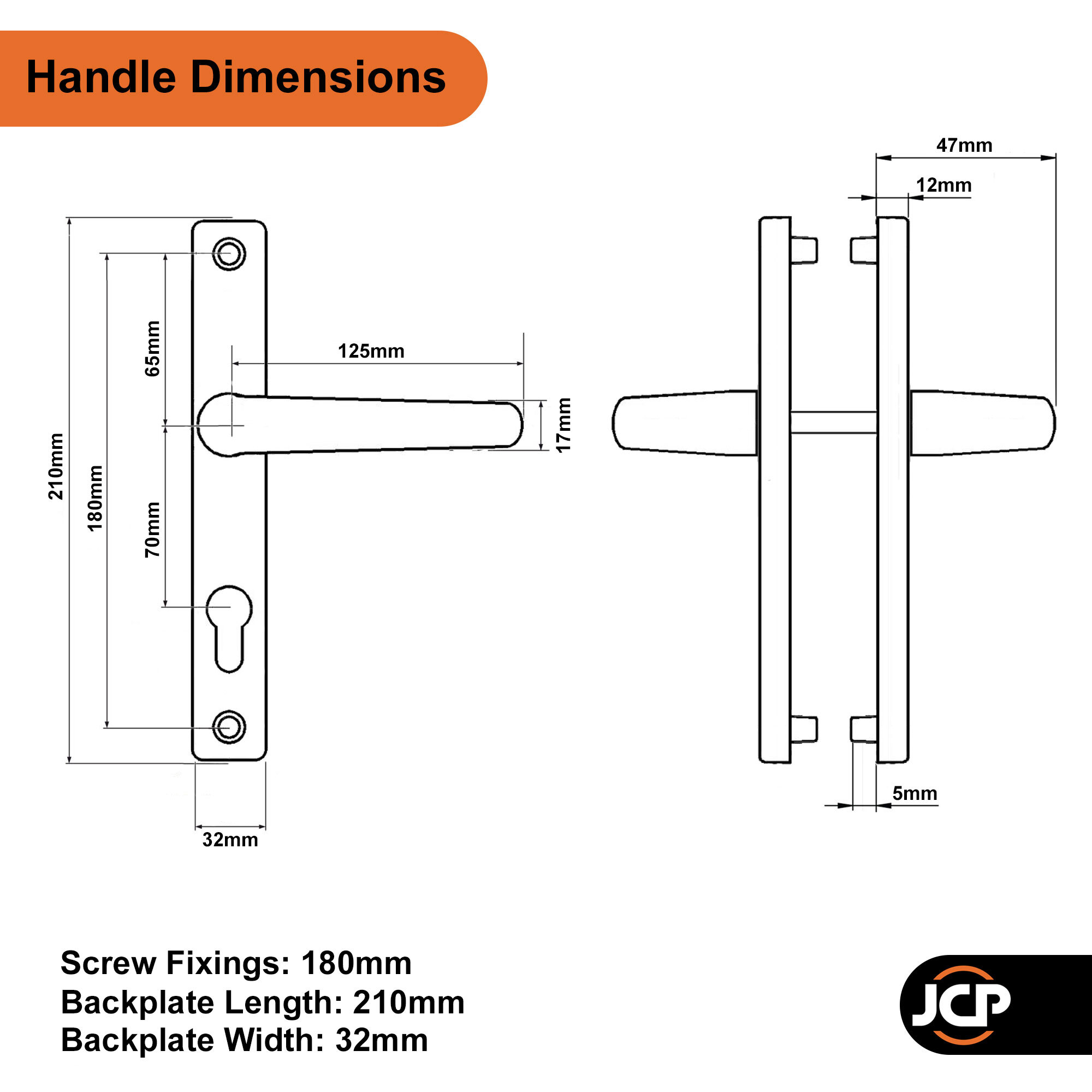

Product Specifications:

• Brand: TSS
• Backplate Length: 210mm
• Backplate Width: 32mm
• Backplate Depth: 12mm
• Spindle Width: 7mm
• Spindle Length: 125mm
• PZ Centres: 70mm (spindle to barrel centre)
• Screw Fixing Centres: 180mm
• Base of Euro to Bottom Screw: 20mm
• Top Screw to Spindle: 65mm
• Bottom Screw to Spindle: 115mm
• Handing: Universal (non-handed)
• Spring Type: Sprung with cassettes
• Compatible Locks: Ferco 4.28, 5.28, 6.35
• Suit Door thickness: 50mm - 75mm
• Finish Options: White, Black, Silver, Polished Chrome, Polished Brass
• Testing: 50,000+ cycle tested, 240+ hour salt spray tested

Please measure your existing handle carefully before ordering to ensure compatibility.

Pro Tips:

Pro Tip: Check for the Ferco stamp on the metal faceplate that runs the full height of your door - this confirms compatibility with these handles and ensures perfect fitment.

Package Contents:

• 1 Pair TSS 70PZ Sprung Door Handles (Internal & External)
• 1 × Spindle (125mm, 7mm)
• 2 × Spring Cassettes

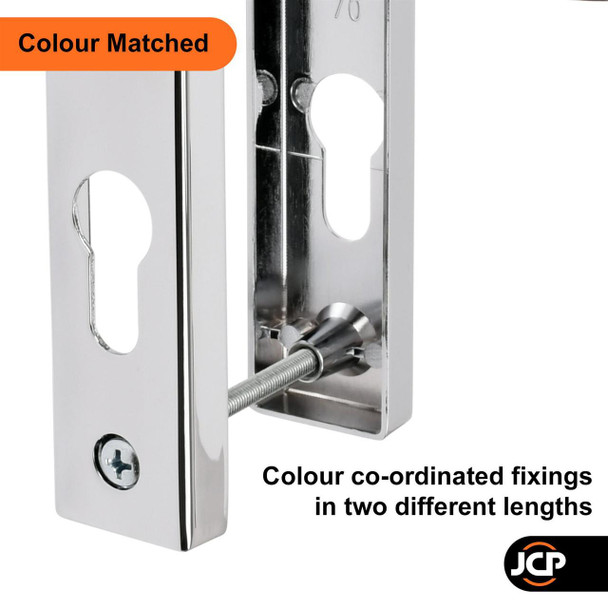

• Colour-Coordinated Screws (2 x 85mm, 2 x 65mm)

Frequently Asked Questions:

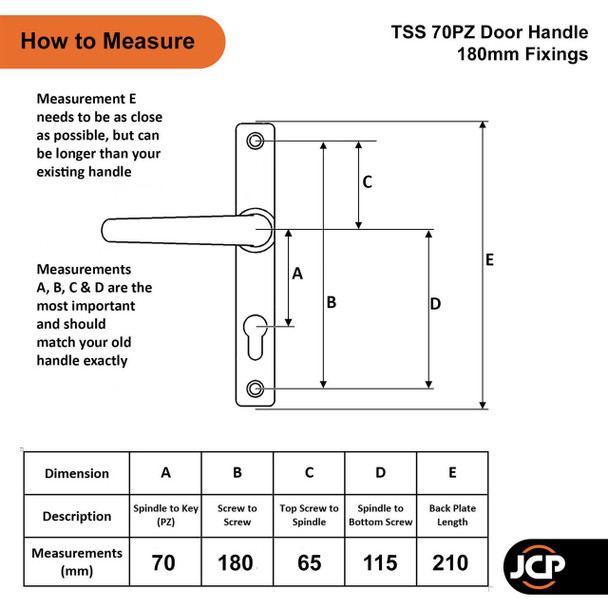

What measurements should I check before ordering a handle set?
The most important measurements are the distance between screw holes centre to centre (this handle measures 180mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 70mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

What does sprung mean and do I need it?
Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or unsprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted. An unsprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.

How do I know if my lock is compatible with this handle?
This handle fits all Ferco 4.28, 5.28 & 6.35 door locks. These locks can easily be identified by looking at the stamp on the metal faceplate that runs the full height of the door. Also check that your existing handle has 70mm PZ centres and 180mm screw centres.

Will this handle fit both left and right-hand doors?
Yes, this is a universal (non-handed) handle design that will fit both left-hand and right-hand opening doors without any modifications needed.

What's included in the package?
You receive a complete pair of handles (internal and external) with spindle, spring cassettes and colour-coordinated screws - everything needed for a professional installation.

Why Choose TSS Door Handles?

TSS door handles represent excellent value engineering, combining robust construction with precise manufacturing tolerances. With over 50,000 cycle testing and extensive salt spray testing on premium finishes, these handles are built to withstand daily use whilst maintaining their appearance and functionality. The spring cassette system ensures consistent operation, whilst the Ferco compatibility guarantees perfect fitment with your existing multipoint locking system. Choose TSS for reliable, long-lasting door hardware that enhances both security and kerb appeal.
