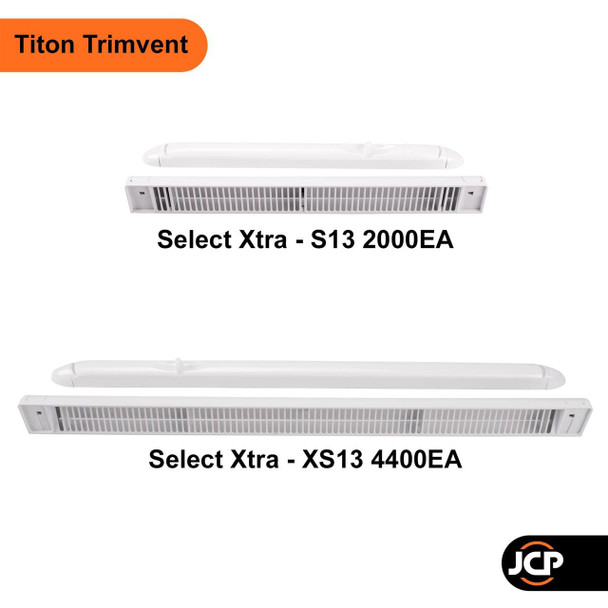

White Titon Trickle Vent Trimvent Select Xtra S13 2000EA and XS13 4400EA For UPVC & Timber Windows

The Trimvent® Select Xtra S13 is an externally mounted plastic ventilator designed to fit neatly over a 13mm slot in a window, offering an Equivalent Area (EA) ranging from 2000mm² to 4400mm². Provided with an XC13 canopy, this ventilator is versatile for use in new constructions or renovation projects across various window materials. Manufactured in white to match RAL 9010, it seamlessly integrates with a range of design aesthetics.

As an enhanced version within the Trimvent® Select line, the Xtra S13 is engineered to provide superior ventilation, optimizing airflow and making the most of existing slot sizes and vent lengths. This product has been meticulously developed in response to the recent 2022 updates in Part F of the Building Regulations for Ventilation (England & Wales). Moreover, it's tailored for compatibility with the Scottish Technical Standards and is aimed at enhancing performance to meet requirements across the UK and Europe.

Having been a chosen solution for ventilation in millions of windows across the UK and Europe for over two decades, the Trimvent® Select ventilators have established a legacy of reliability and effectiveness in residential and commercial properties.

Features:

• Uprated design to improve performance and Regulations compliance
• Infinitely controllable - easy to fit
• Suitable for timber, aluminium or UPVC windows

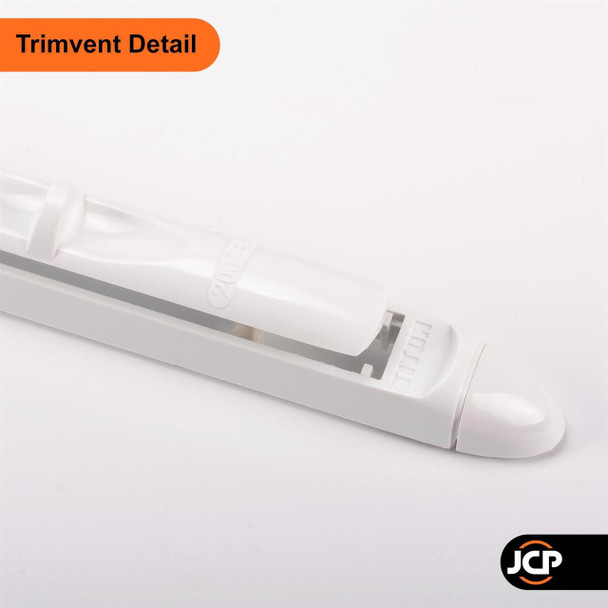

• Unique occupant controllable tilting T-bar
• Rounded unobtrusive shape with sculpted finger recess
• Matching screw covers.
• For use over 13mm slot
• Patented and registered design
• Manufactured from: Vent – PBTP (UV Stable) & POM, Canopy – PVCu
• Tested in accordance with BS EN 13141-1:2019 (airflow, air leakage and weather tightness)
• Acoustic performance tested in accordance with BS EN ISO20140-10:1992, BS EN ISO140-10:1991 and single figures to BS EN ISO717-1:1991

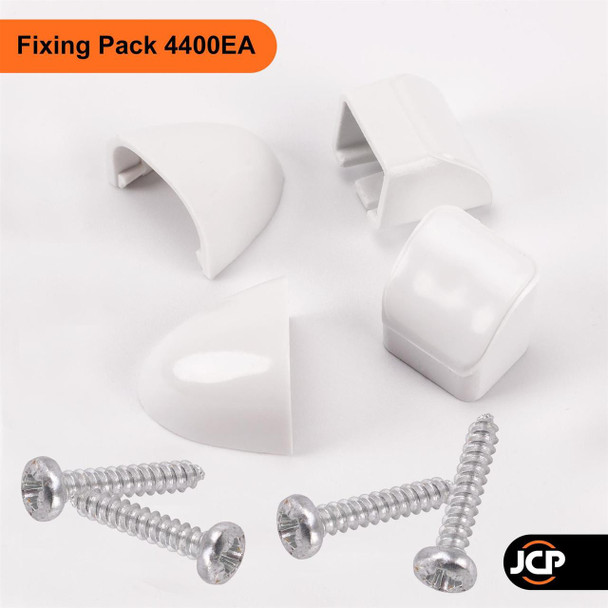

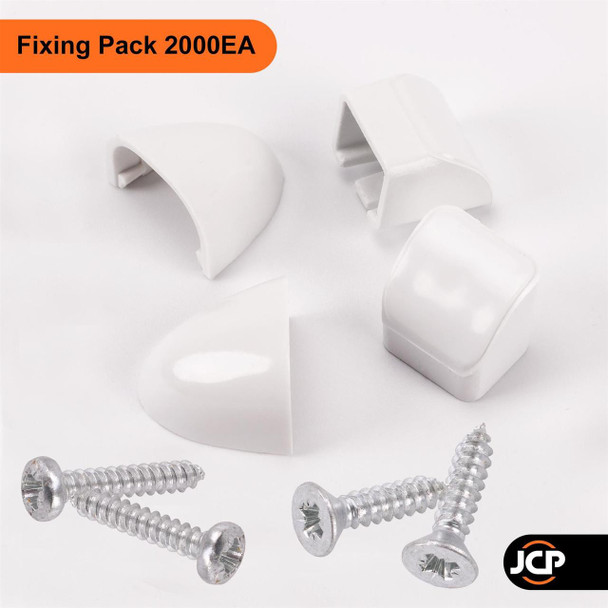

What's in the pack?

1 x Internal canopy

1 x External canopy

Matching screw cap covers

Screws

Dimensions:

2000EA

• Trickle vent length: 265mm
• Trickle vent width: 18.5mm
• Slot width : 13mm
• Slot length: 225mm total
• Screw hole fixing distances: 242mm

4400EA

• Trickle vent length: 411mm
• Trickle vent width: 18.5mm
• Slot width : 13mm
• Slot length: 173.5mm (20mm gap) 173.5mm - 367mm total
• Screw hole fixing distances: 387mm

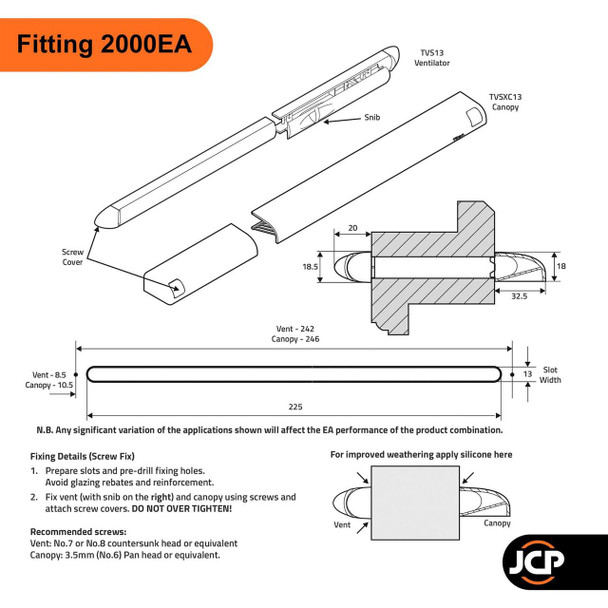

Fitting Guide:

• Prepare slots and pre-drill fixing holes. Avoid glazing rebates and reinforcements, (please see fitting sheets in gallery for details).
• Fix vent and canopy using screws and attach screw covers. DO NOT OVER TIGHTEN!
• We recommend the use of silicone sealant for optimum weather sealing.
