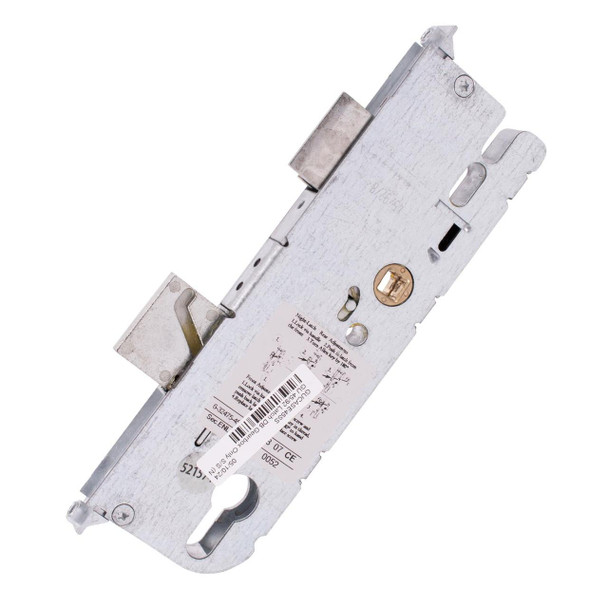

GU New Style Gearbox for Multipoint Door Lock 35mm 45mm Backset 92 PZ

GU New Style Multipoint Gearbox Door Lock Centre Case Mechanism 92PZ Split Spindle 35mm or 45mm Backset

The GU New Style Multipoint Gearbox Centre Case Mechanism is a premium solution for enhancing the security and functionality of your doors. Specifically designed to fit new-style GU locks, this genuine gearbox delivers exceptional reliability and performance. With a choice of 35mm or 45mm backsets, it accommodates a wide range of door configurations, making it a versatile addition to your home improvement toolkit. Its innovative design features a latch and deadbolt mechanism, providing robust locking power to keep your property secure. Whether you're upgrading your existing system or replacing a worn gearbox, this high-quality component ensures smooth operation and long-lasting durability.

Identifying the correct gearbox for your multipoint lock has never been easier, thanks to the clear distinctions between GU's new-style and old-style locks. New-style gearboxes feature a vertical groove at the top, a detail that accommodates bolts for handles and ensures a secure fit. Precision-engineered for compatibility, this gearbox is fixed to the faceplate with three screws (not included) and requires careful measurement, allowing for a 2mm margin to ensure an accurate fit. With one of the largest ranges of backsets on the market, the GU New Style Gearbox is your go-to choice for modern door security systems, delivering unparalleled functionality and peace of mind.

Benefits:

• Universal Fit for Any Door Configuration – Whether your door opens to the left or right, the fully reversible latch ensures a hassle-free installation, saving you time and effort.

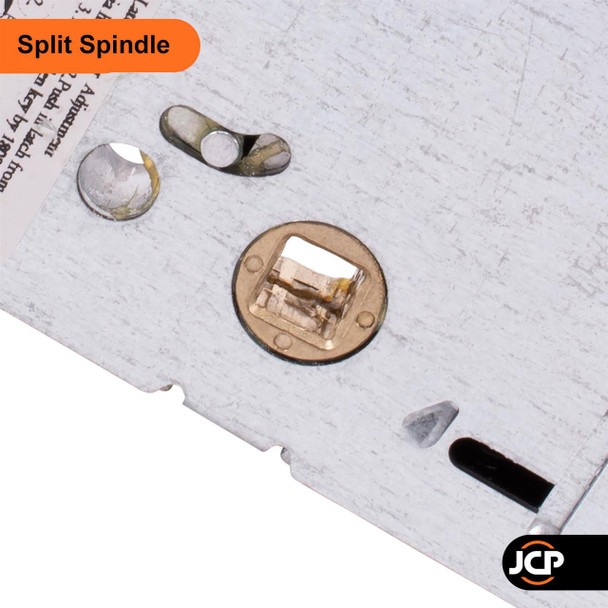

• Enhanced Security with Night Latch Functionality – The reversible split spindle night latch adapts seamlessly to both left and right-handed doors, giving you added security and convenience in one robust design.
• Perfect Replacement for a Smooth Repair – Specifically designed as a genuine replacement gearbox for GU New Style multipoint locks, ensuring a precise fit and restoring your door’s security without the need for costly modifications.

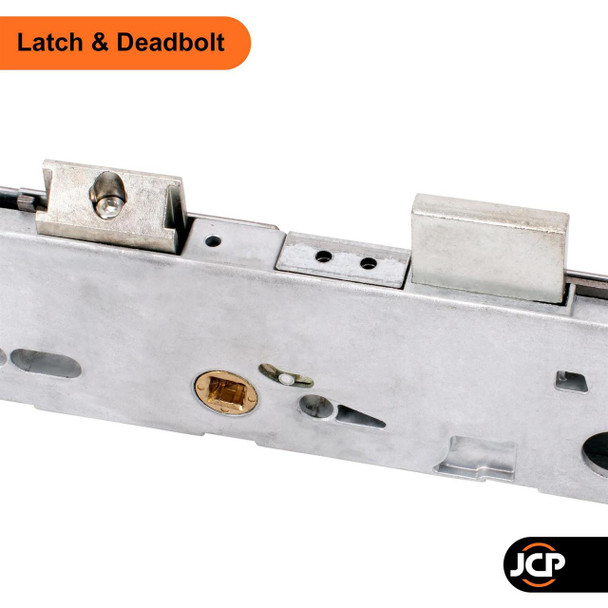

• Reliable Locking with Latch & Deadbolt Combination – Enjoy dual-locking security with a strong latch for everyday use and a deadbolt for extra reinforcement, giving you peace of mind that your door is well protected.

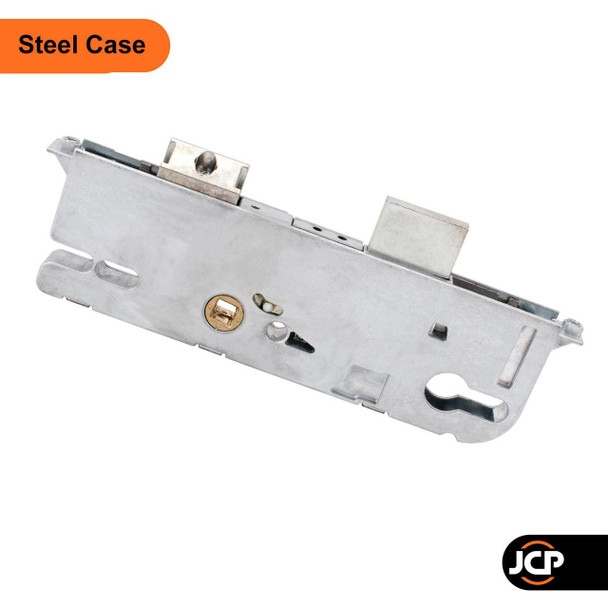

• Durable, Long-Lasting Steel Construction – Made from high-quality steel, this gearbox is built to withstand daily wear and tear, providing superior strength and longevity for your door locking mechanism.
• Versatile Backset Options for a Custom Fit – Available in both 35mm and 45mm backset sizes, ensuring compatibility with a wide range of doors and making it easy to find the perfect fit for your home.

What's in the pack?

1 x GU New Style Split Spindle Door Lock Gearbox Case 35mm or 45mm

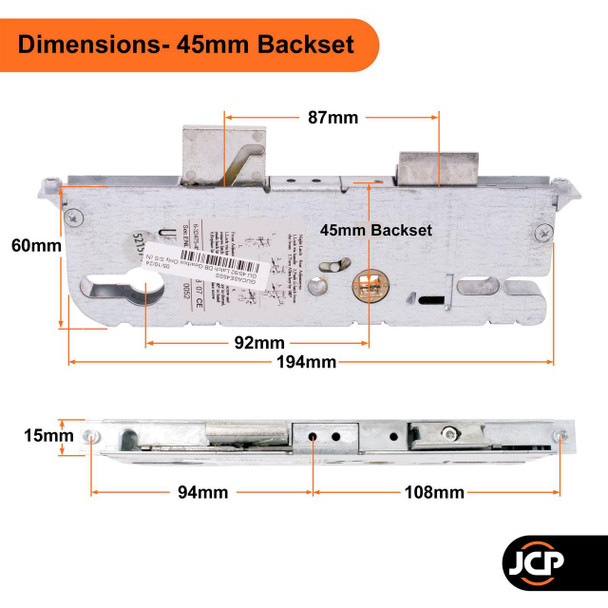

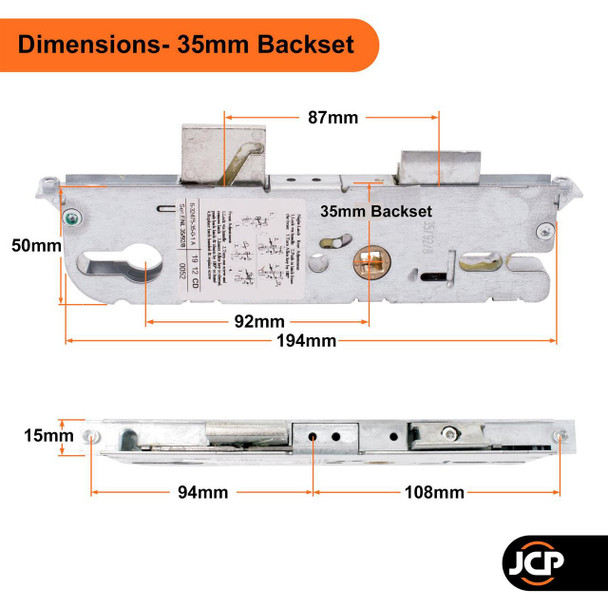

Dimensions:

• Lock case length: 194mm

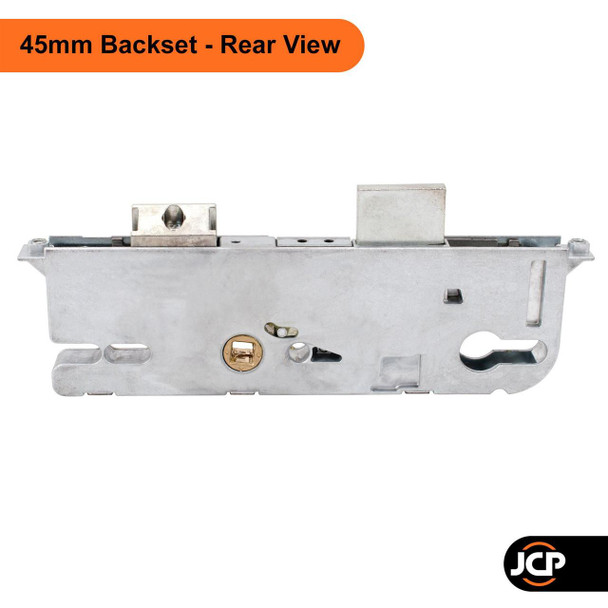

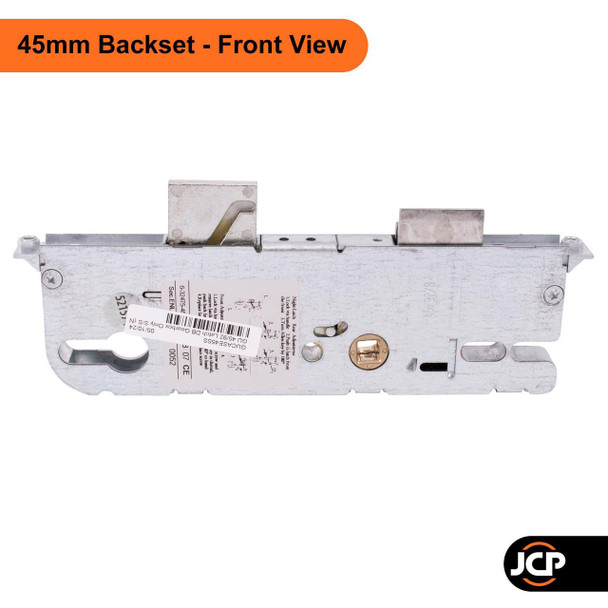

• Lock case depth - 45mm Backset: 60mm (Excluding faceplate)

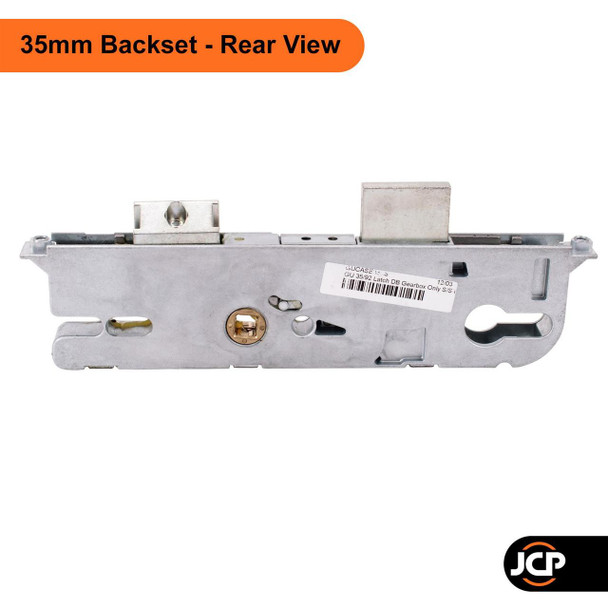

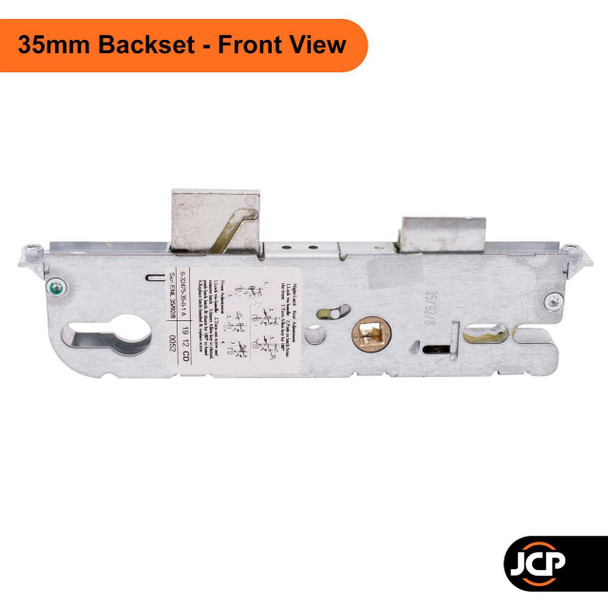

• Lock case depth - 35mm Backset: 50mm (Excluding faceplate)
• Lock case width: 15mm
• PZ: 92mm
• Backset: 35mm or 45mm
• Screw fixing centres: 94mm (Bottom to middle)
• Screw Fixing Centres : 108mm (Top to middle)
• Latch to hook centres: 87mm

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset (the distance from the centre of the handle spindle to the front of the faceplate) for this item either 35mm or 45mm and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel) in this case 92mm. Both measurements should be checked before ordering to ensure compatibility.

How to reverse the Latch and Night Latch (Split Spindle):

• Important: Before starting any adjustments, the gearbox must be in the locked position. This can be done by lifting the door handle to throw the deadbolt.
• Perform the reversal before installing the lock into your door.

For Doors That Open Inwards

1: If the latch is on the correct side:

• No action necessary.

2: If the latch is on the wrong side:

• Step 1: Ensure the gearbox is in the locked position.
• Step 2: Using a 3 mm Allen key, loosen the screw located at the front of the latch.
• Step 3: Gently pull the latch out of its case.
• Step 4: With the latch removed, insert the same 3 mm Allen key deep into the hole located at the bottom of the latch.
• Step 5: Rotate the key (and latch mechanism) 180°.
• Step 6: Reinsert the latch into the case in the new, required orientation.
• Step 7: Tighten the screw.

For Doors That Open Outwards

1: If the latch is on the correct side:

• Step 1: Ensure the gearbox is in the locked position.
• Step 2: Insert a 3 mm Allen key through the black plastic on the back side of the lock.
• Step 3: Rotate the key 180° to reverse the spindle function.
• Step 4: Remove the Allen key once the rotation is complete.

2: If the latch is on the wrong side:

• Step 1: Ensure the gearbox is in the locked position.
• Step 2: Using a 3 mm Allen key, loosen the screw at the front of the latch.
• Step 3: Gently pull the latch out of its case.
• Step 4: With the latch removed, insert the same 3 mm Allen key deep into the hole at the bottom of the latch.
• Step 5: Rotate the key (and latch mechanism) 180°.
• Step 6: Reinsert the latch into the case in the new, required orientation.
• Step 7: Tighten the screw.

Follow these steps carefully to reverse the latch or night latch as needed. Remember: The gearbox must be in the locked position before any adjustments are carried out.
