Fullex XL Hook Gearbox for Multipoint Door Lock Twin Spindle 35mm Backset 92 62 PZ

No yet Review(s) Write a Review

£24.77

SKU:

4C2-DA8-821

UPC:

6.36226E+11

Backset:

35mm

PZ:

92mm & 62mm

Spindle:

Twin

Product Description
Product Reviews
Shipping & Returns

Fullex XL Hook Gearbox for Multipoint Door Lock Twin Spindle 35mm Backset

This is a replacement Fullex XL gearbox for Fullex multipoint locks that have a backset of 35mm. The gearbox is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily achieved. The latch can also be reversed to fit both left and right handed doors. Please note, this a double spindle version.

Fullex manufacture several different types of gearboxes, always take careful measurements to ensure a correct fit..

Features:

Hook and Deadlock
Double Spindle - for lever/ lever handle operations
Non Handed - fits both left and right handed doors
PAS23/24 and Secured by Design
Fully reversible latch

What's in the pack?

1 x Fullex XL Multipoint Door Lock UPVC Gear Box Lock Case Double Spindle 35mm 92PZ

Dimensions:

Lock case length: 227mm
Lock case depth: 47mm
Lock case width: 15.5mm
Deadbolt width: 23.3mm
Hook width: 21.7mm
Backset: 35mm
Screw centres: 62mm and 92mm

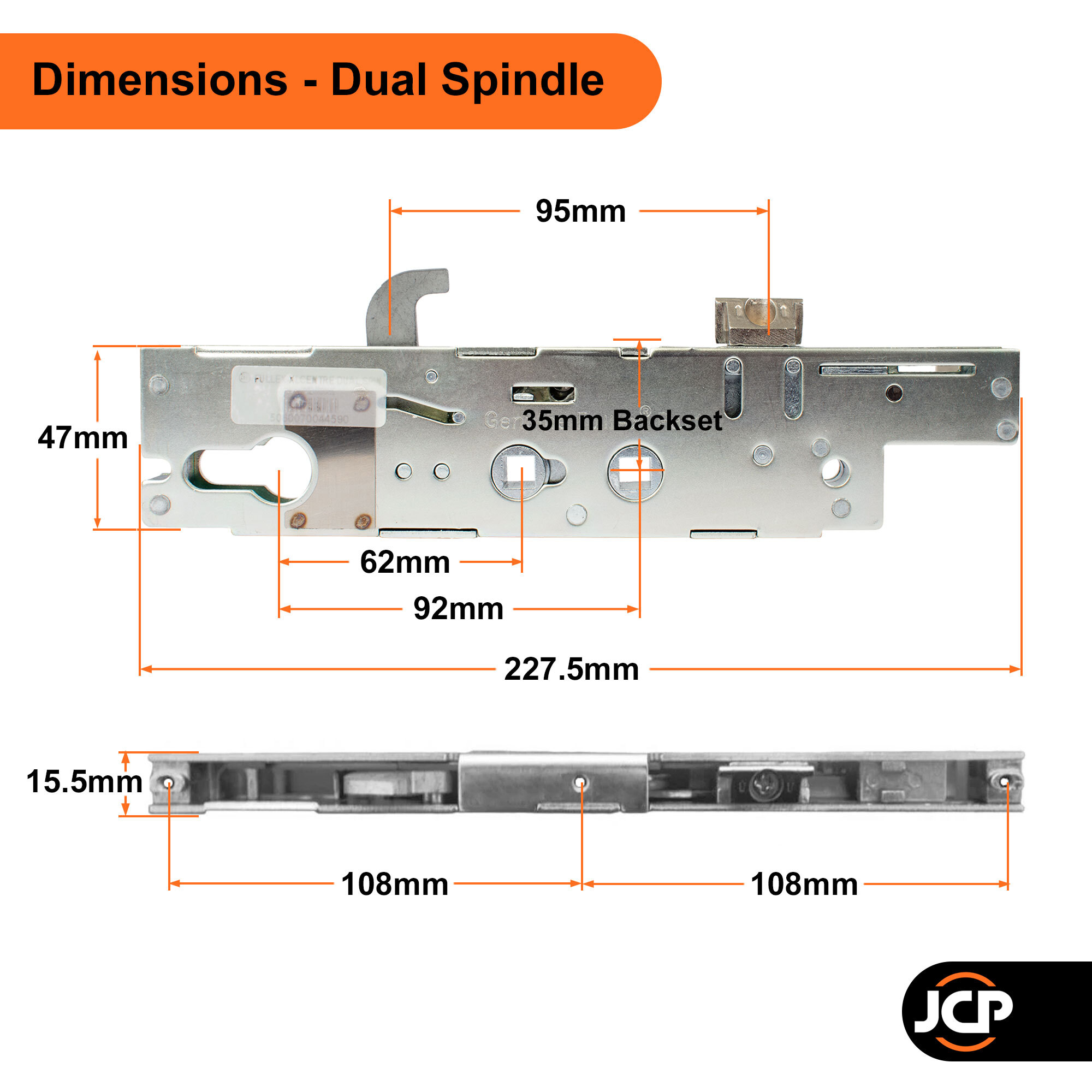

Please see diagram in gallery for more information.

What should I check before ordering a new door lock?

The most important measurements are the lock Backset and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Please remember to check your gearbox against all of the measurements (you will need to remove the lock from the door to get accurate measurements).

The centre latch is non-handed, it can easily be reversed by following the instructions below.

Undo the screw located in the end of the latch.
Rotate the latch 180°.
Slide the latch back in.
Replace and tighten the screw.
