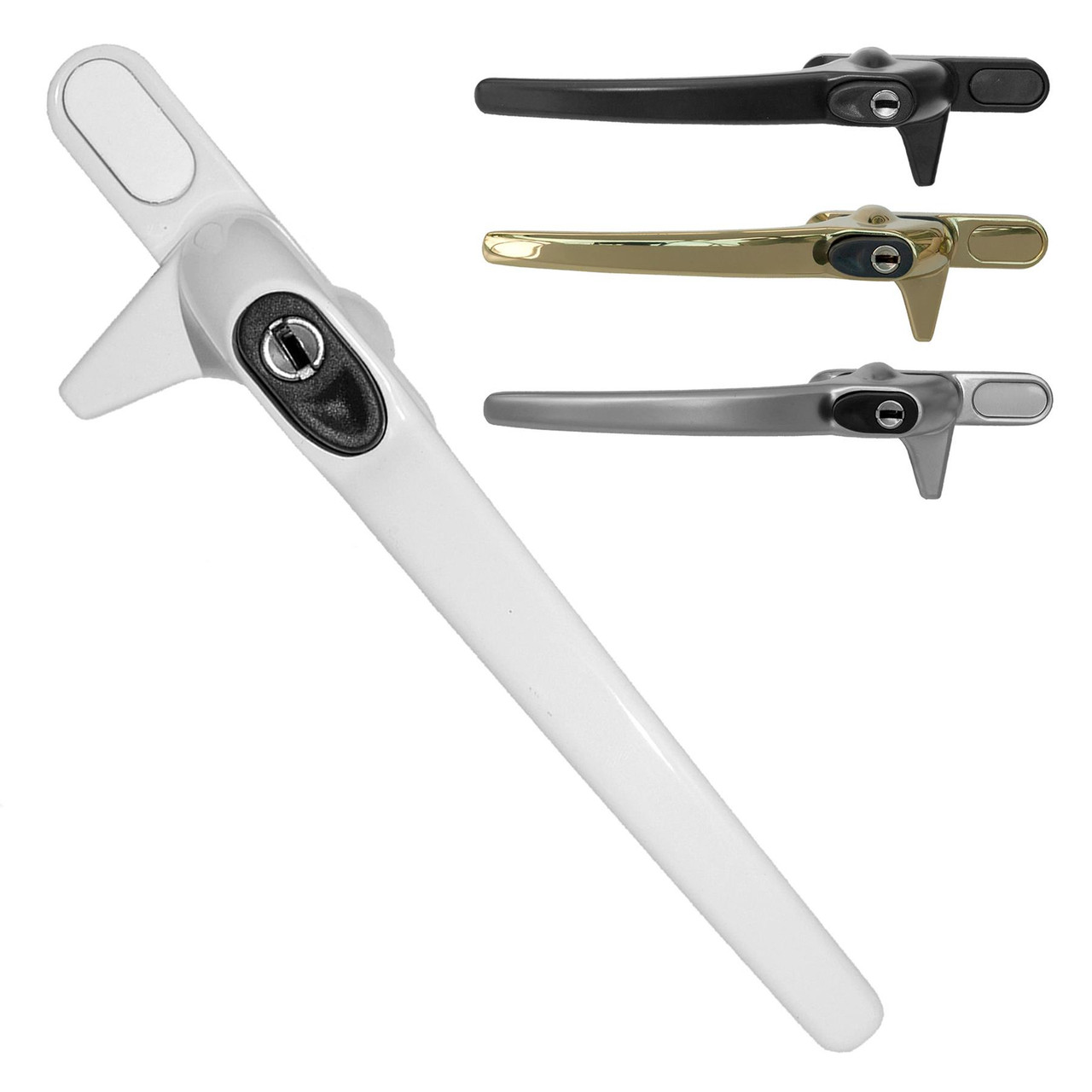

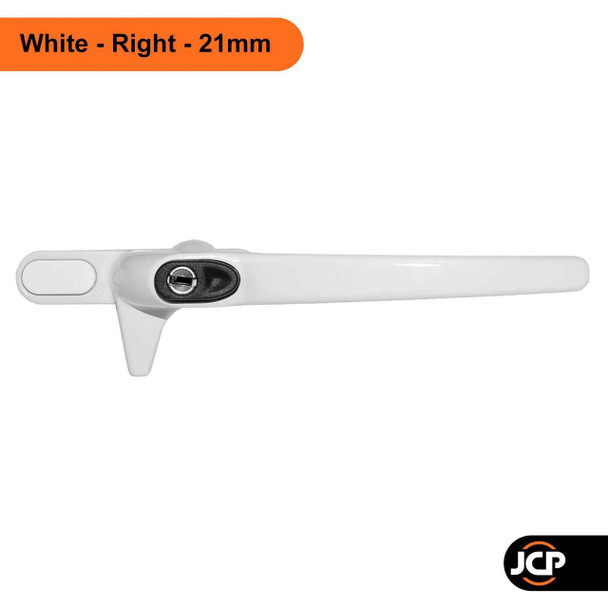

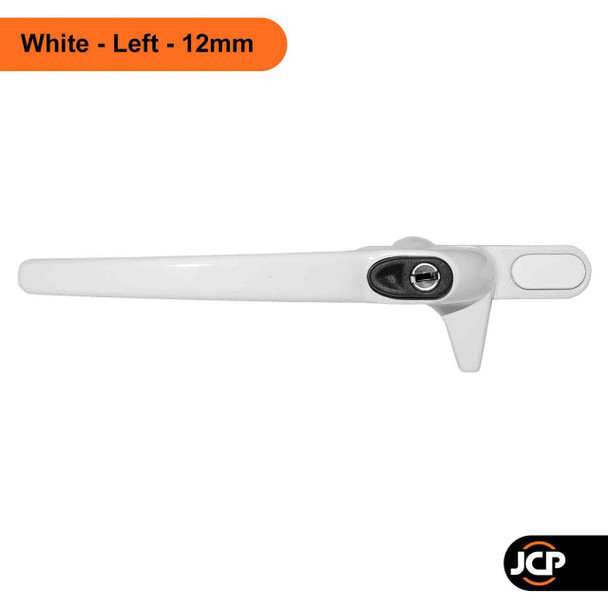

Era Charisma Cockspur UPVC Window Handle 12 or 21mm Backset Stack Key Locking

The Era Charisma Cockspur UPVC Window Handle offers the perfect balance of sleek design and reliable performance, making it an excellent choice for PVC-u, aluminium, and timber window applications. With a slender grip and stylish contemporary look, this handle is engineered for effortless use and long-term durability. The high-quality locking cylinder ensures a secure fit, while the easy-to-use release button adds convenience. Available in two backset sizes, 12mm or 21mm, the Charisma Cockspur handle automatically locks upon closing and can be deadlocked for enhanced security, offering peace of mind in any setting.

Designed with versatility in mind, the Charisma Cockspur not only provides secure locking but also complements a wide range of window styles. Its ergonomic shape ensures comfort, while the positive stop feature guarantees precise in-line closure every time. Whether you’re upgrading UPVC windows or renovating timber frames, this handle’s push-to-unlock mechanism and die-cast barrel lock deliver exceptional security and ease of use. With key-locking functionality and sleek screw cover caps, the Charisma Cockspur is a stylish, practical, and secure window handle solution.

Features:

• Ergonomically designed for comfort
• Positive stop to ensure accurate in-line closure
• Push to unlock mechanism
• Key dead-locking for added security
• Each handle comes with key and screw cover cap
• High quality die-cast barrel lock
• Fixings not included

What's in the pack?

1 x Cockspur Handle

1 x Key

1 x Screw Coverplate

N. B. Fixings not included

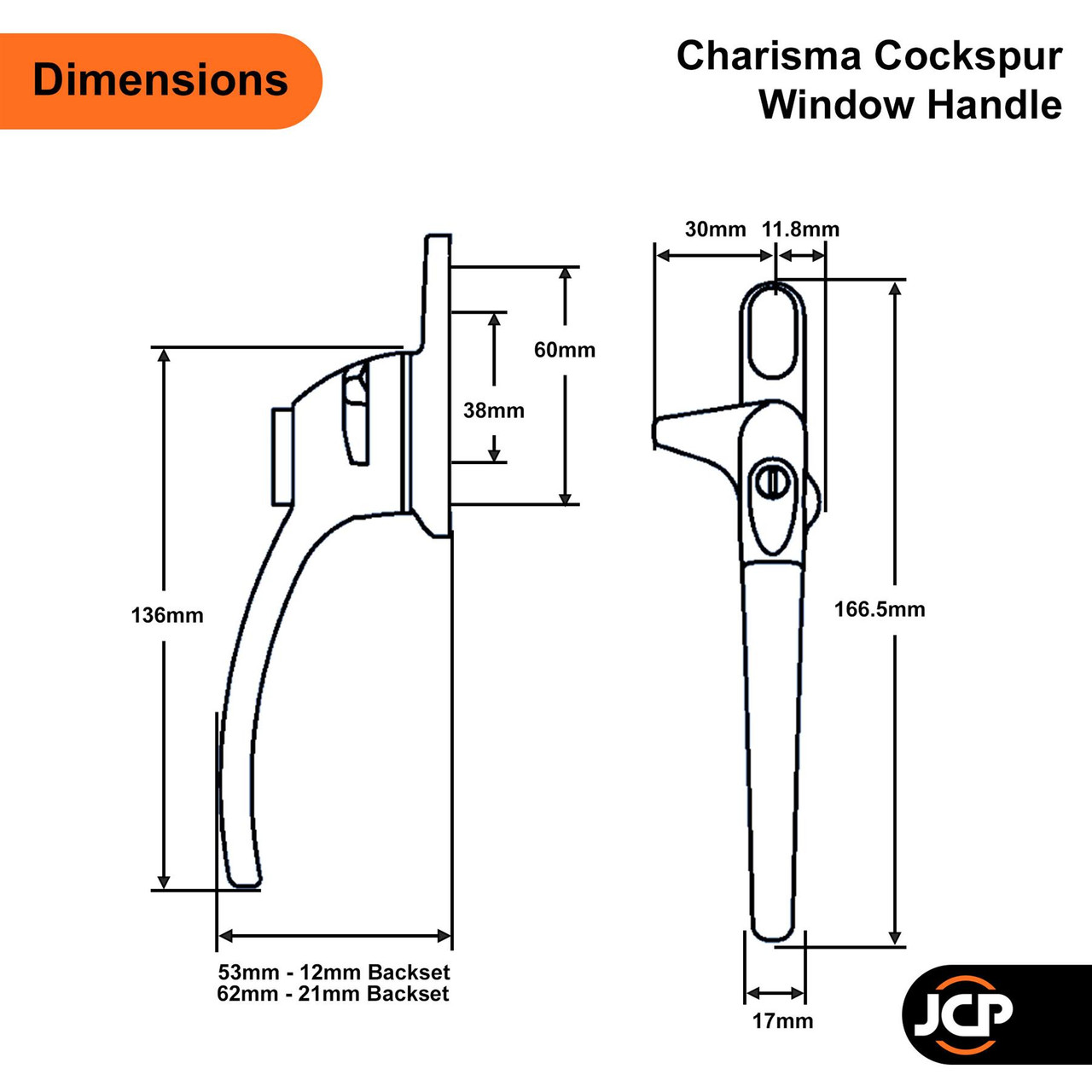

Dimensions:

• Handle length: 166.5mm
• Handle width: 17mm
• Lever length: 136mm
• Handle height: 53mm (12mm backset), 62mm (21mm backset)
• Distance between screw holes - 60mm (outer holes), 38mm (inner holes)

Please see technical diagram in gallery.

All dimensions are approximate.

What do I need to check before ordering a handle?

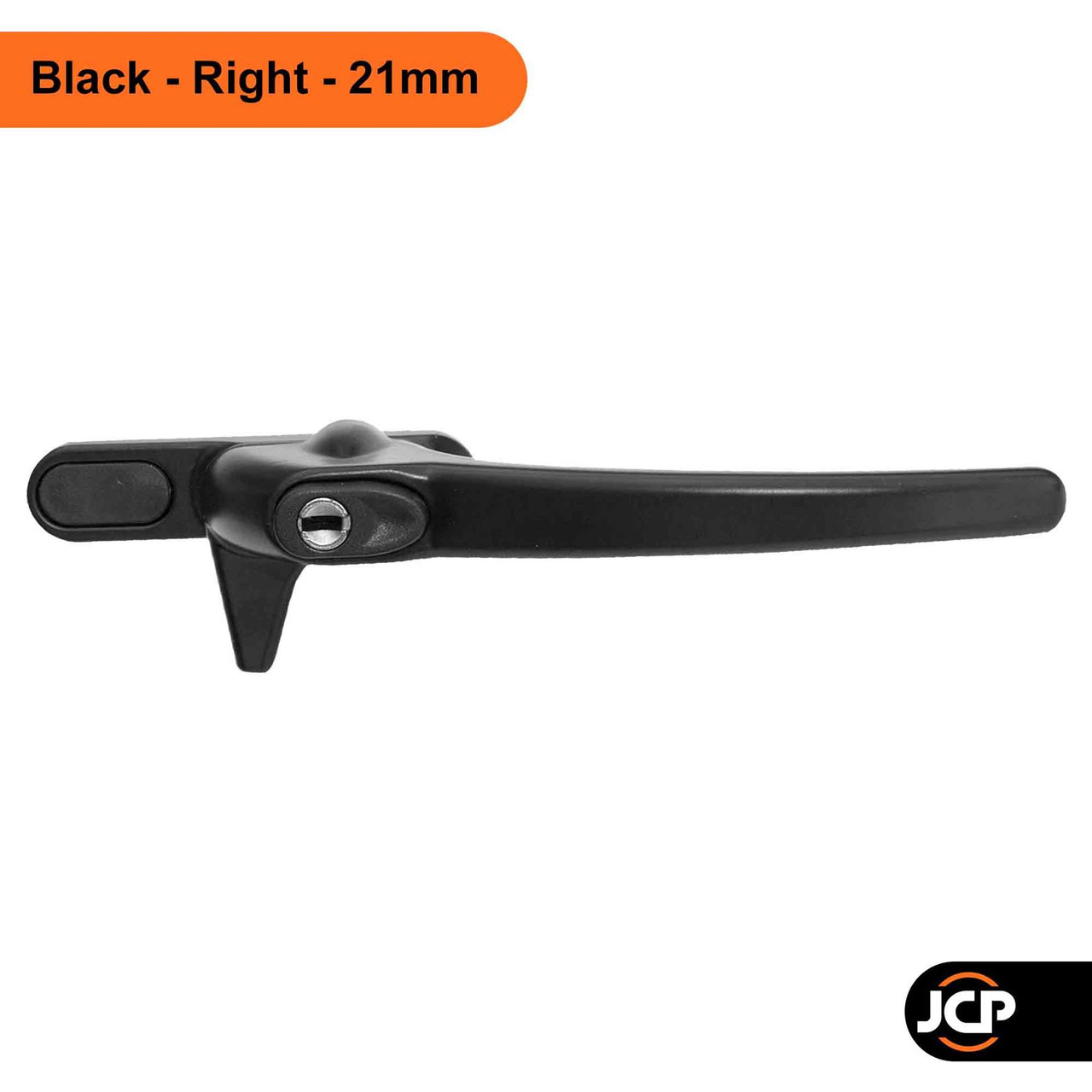

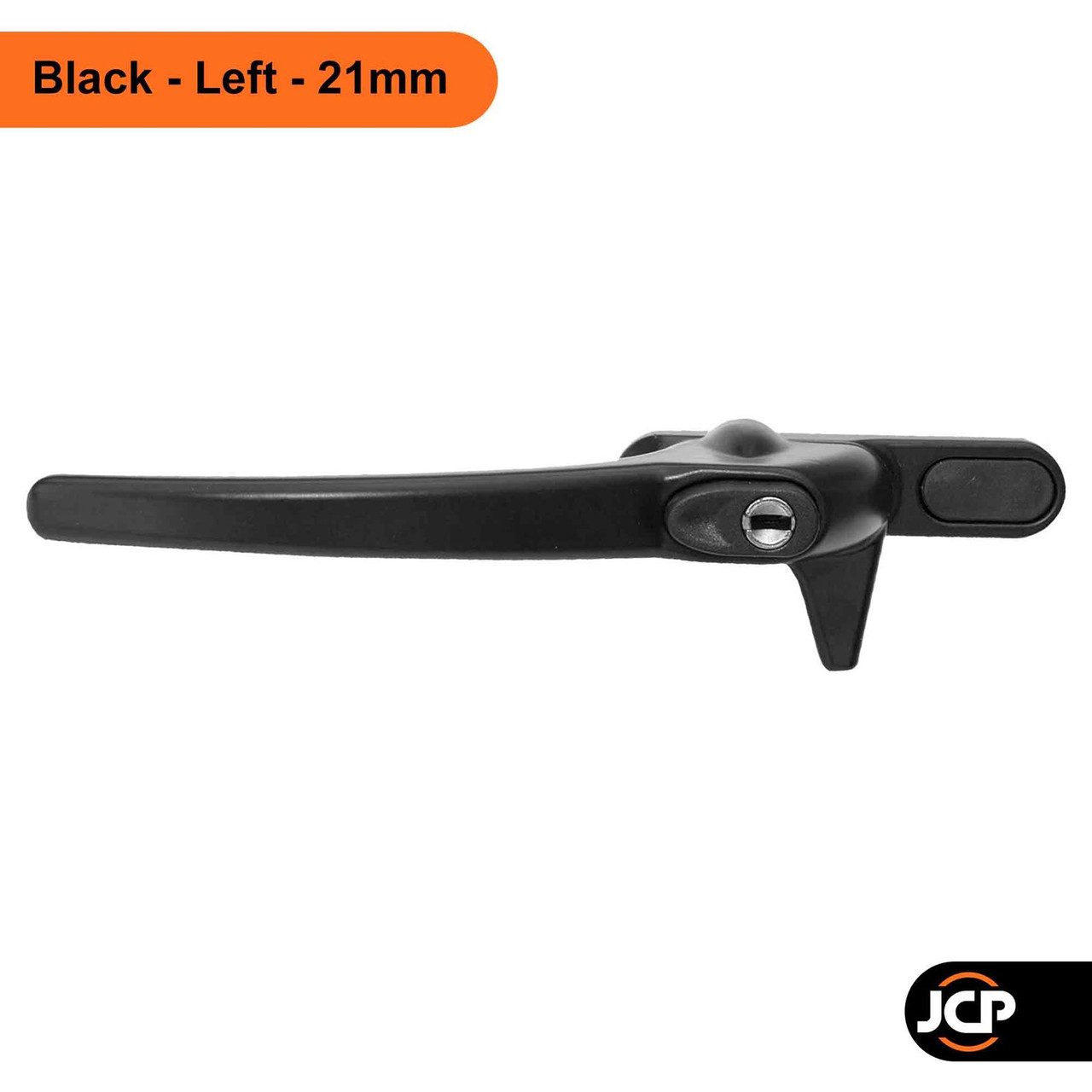

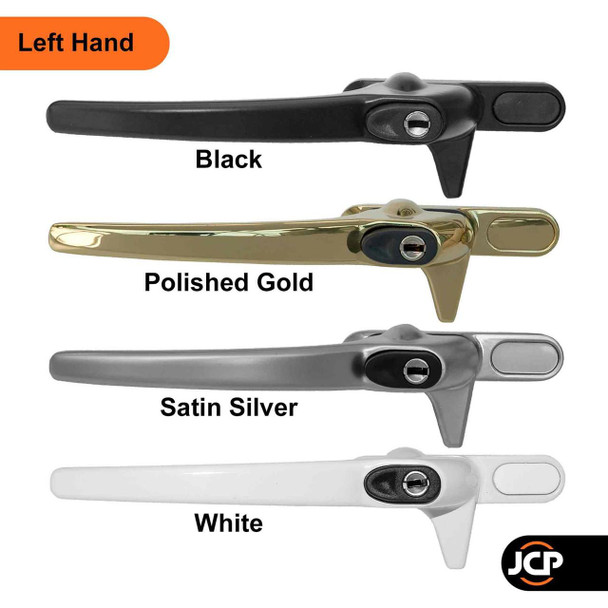

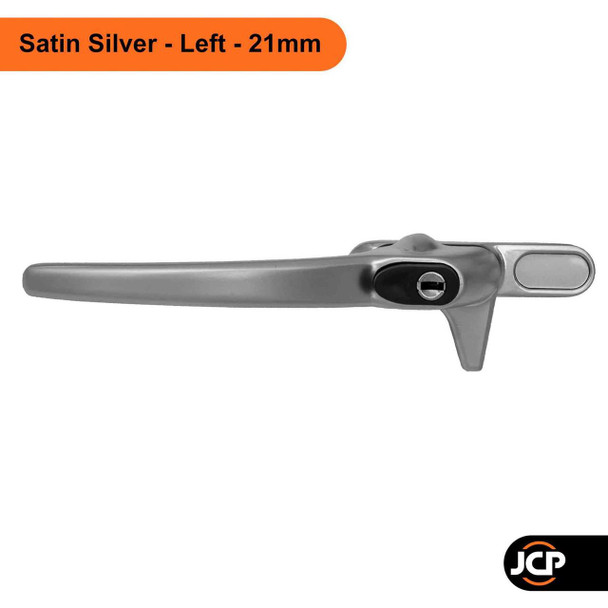

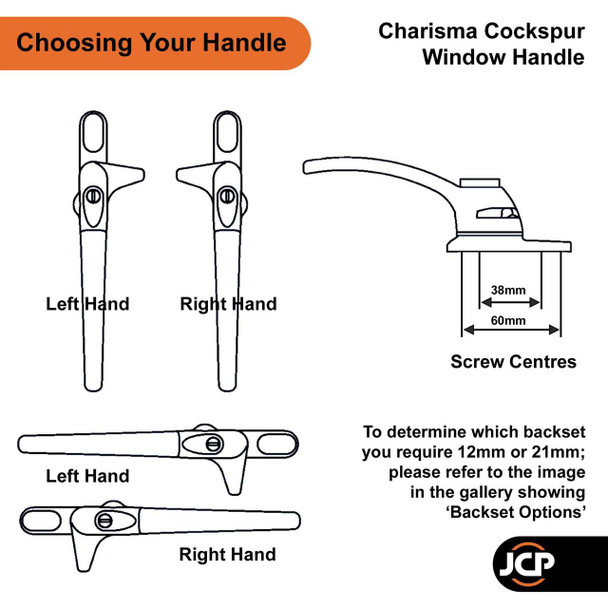

Left or Right Hand?

First check the hand of your handle, for a top hung window that opens out - if the long part of the handle points to the left and the little spur points down you will need a left hand, if the long part of the handle points to the right and the little spur points down you will need a right hand. For side opening windows - if the long part of the handle points down and the little spur points to the right then you need a left hand handle, conversely if the long part of the handle points down and the little spur points to the left then you need a right hand handle. Please see image in gallery.

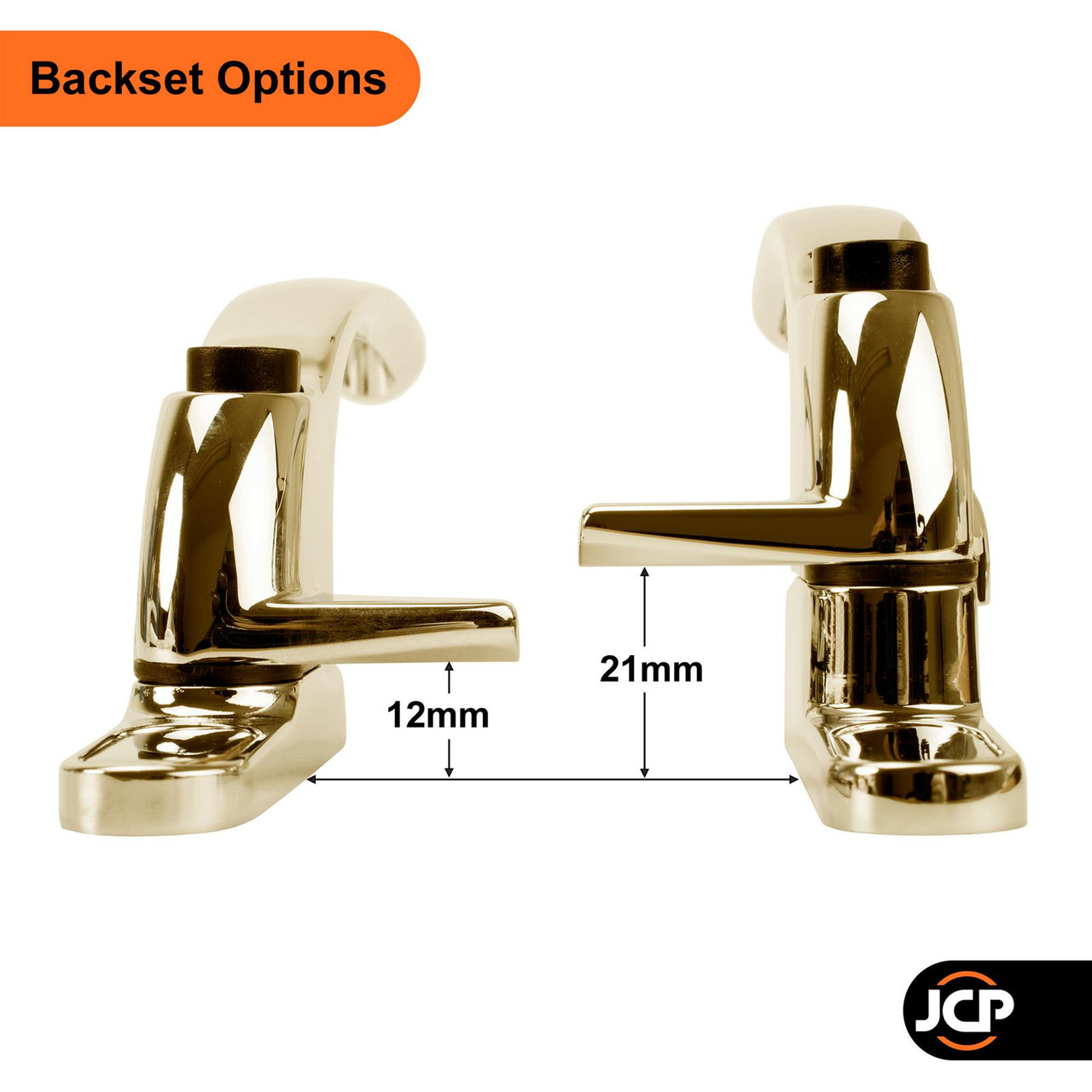

Which backset will I need?

To measure the backset (stack height) you will need to measure from the baseplate (the part that sits flat against the window) to the underside of the handle nose (please see diagram in gallery).

How to remove and replace a Cockspur window handle:

• Remove the screw cover cap to reveal two screws, unscrew and remove
• Move the handle to the open position which will show another two screws, remove as before
• Once all four screws have been removed the handle should come off
• Replace by lining up the new handle with the old screw holes
• Put the new screws in and secure into place
• Once the screws at the top and bottom of the base are fitted put the screw cover (if applicable) over the screw hole at the top of the base
