Description

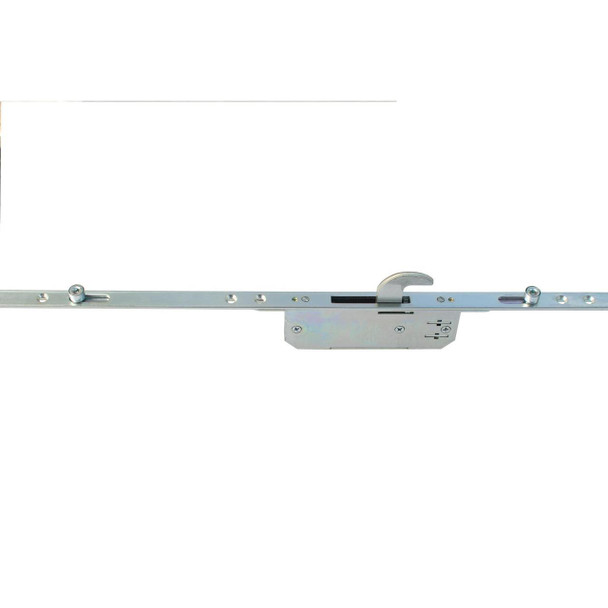

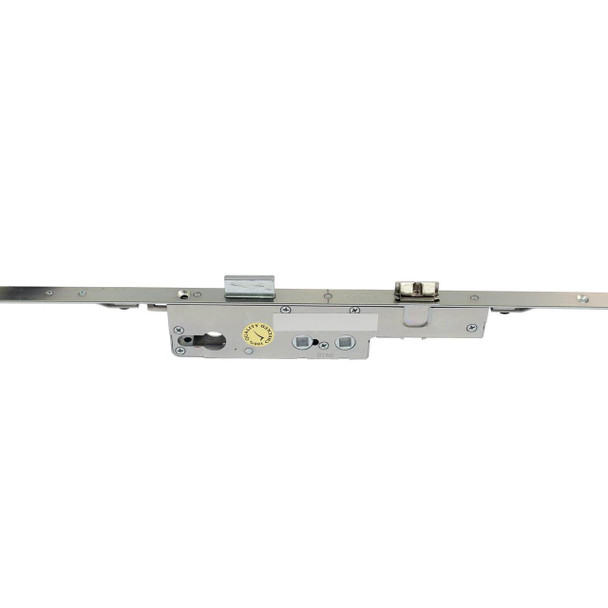

Avocet WMS Trivalent Multipoint Door Lock 2 Hook 4 Roller Cam 35mm Backset 92PZ Twin Spindle
The Avocet Trivalent 6 Point Door Lock is suitable for doors with lever-lever and lever-pad applications. Fitted with 2 reverse hooks and 4 roller cams for maximum security. Available in a 35mm backset with 92PZ 62PZ spindle centres.
Features
- 4 roller cams and 2 hooks for maximum security
- Reversible centre latch to suit all applications
- Latch can be changed from the faceplate without removing unit from the profile
- Dual Spindle 62 & 92PZ
- Corrosion Resistance to BS EN 1670 Grade 4
- Endurance tested to 100,000 operations

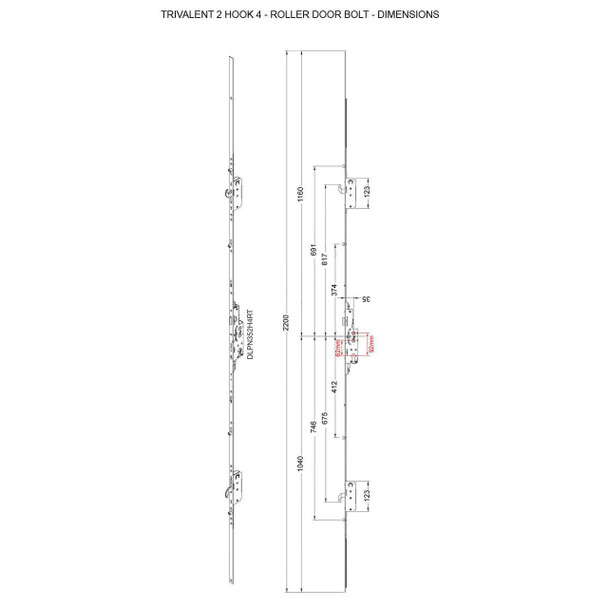

Measurements
- Overall Length - 2200mm
- Centre of gearbox to top hook - 617mm
- Centre of gearbox to bottom hook - 675mm
- PZ - 92PZ or 62PZ
- Backset - 35mm
- Faceplate Width - 16mm
What's in the pack?
1 x Avocet WMS Trivalent Multipoint Door Lock 2 Hook 4 Roller Cam 35mm Backset 92PZ Twin Spindle
What should I check before ordering a new door lock?
The most important measurements are the back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
Item specifics
Centres/PZ: |
92mm/62mm |
Lock Type: |
Hook |
Operation: |
Lever/Lever & Lever/Pad |
Faceplate: |
16mm |
Spindle: |
Twin |
