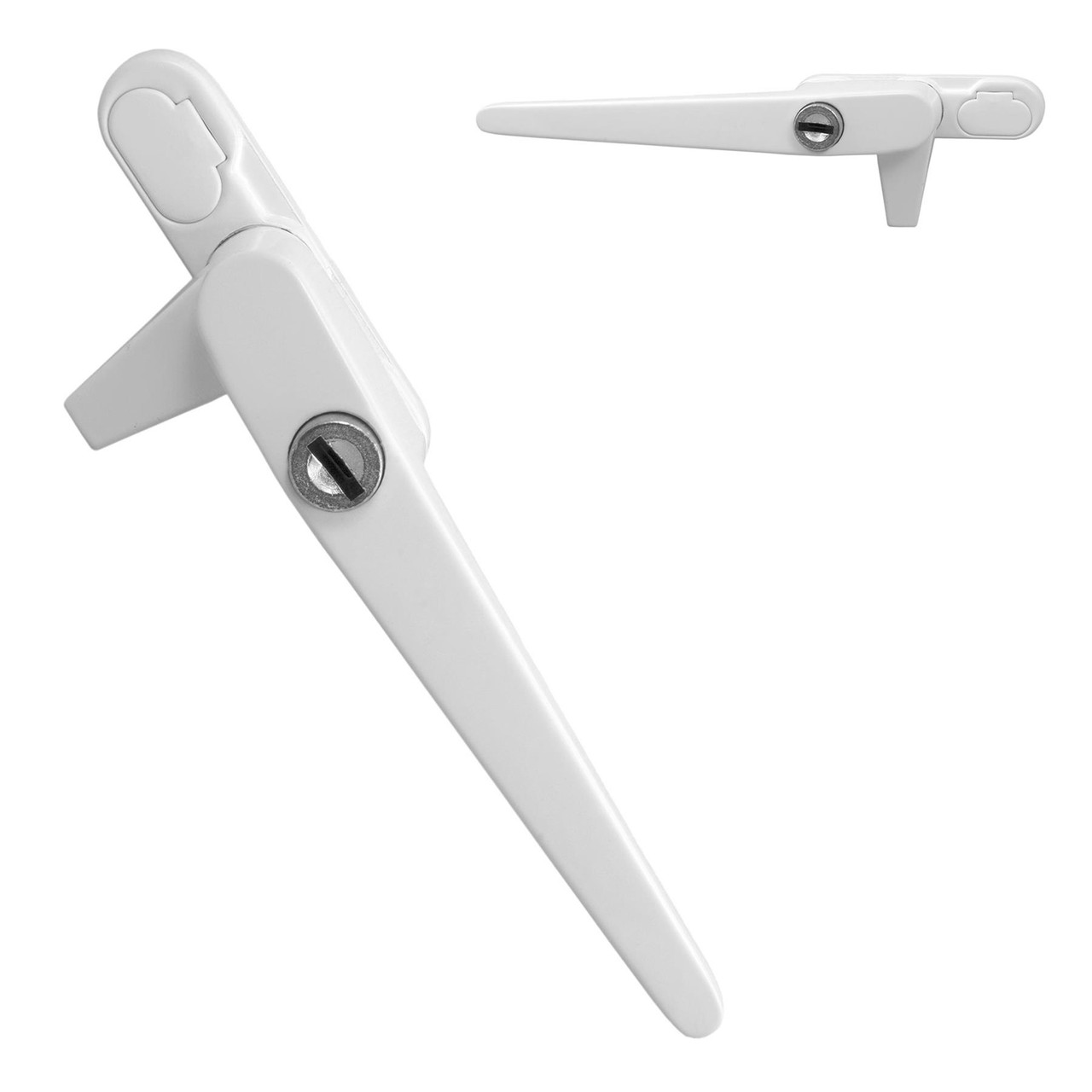

Stronghold White Cockspur UPVC Window Handle 17mm Backset Double Glazing Winlock

The Stronghold White Cockspur UPVC Window Handle is a versatile and robust choice for enhancing the security and functionality of your windows. With a sleek, contemporary design, this handle is ideal for use with PVC-u, aluminium, and timber window frames. Its 17mm backset and ergonomic grip make it comfortable to use, while the high-quality locking deadlock cylinder ensures long-lasting durability and protection. The handle’s nose perfectly locks over the plastic striker plate attached to the window frame, providing a secure fit every time.

For added peace of mind, the Stronghold Cockspur can be deadlocked using the included key, offering an extra layer of security. Designed for both style and function, this window handle features a die-cast barrel lock and comes with a screw cover cap for a neat finish. While the fixing screws are not included, the handle’s universal design and precise hole spacing—53.5mm for outer holes and 33.5mm for inner holes—make installation straightforward. Whether you're upgrading your double glazing or securing your home, this window handle is an excellent choice for DIY enthusiasts and professionals alike.

Features:

• Ergonomically designed for comfort
• Key dead-locking for added security
• Each handle comes with key and screw cover cap
• High quality die-cast barrel lock
• Fixing screws not included

What's in the pack?

1 x Cockspur Handle

1 x Deadlock Key

1 x Screw Coverplate

N.B. Fixings not included

Dimensions:

• Handle length: 148.5mm
• Handle width: 16mm
• Lever length: 120mm
• Handle height: 44.5mm
• Distance between screw holes - 53.5mm (outer holes), 33.5mm (inner holes)

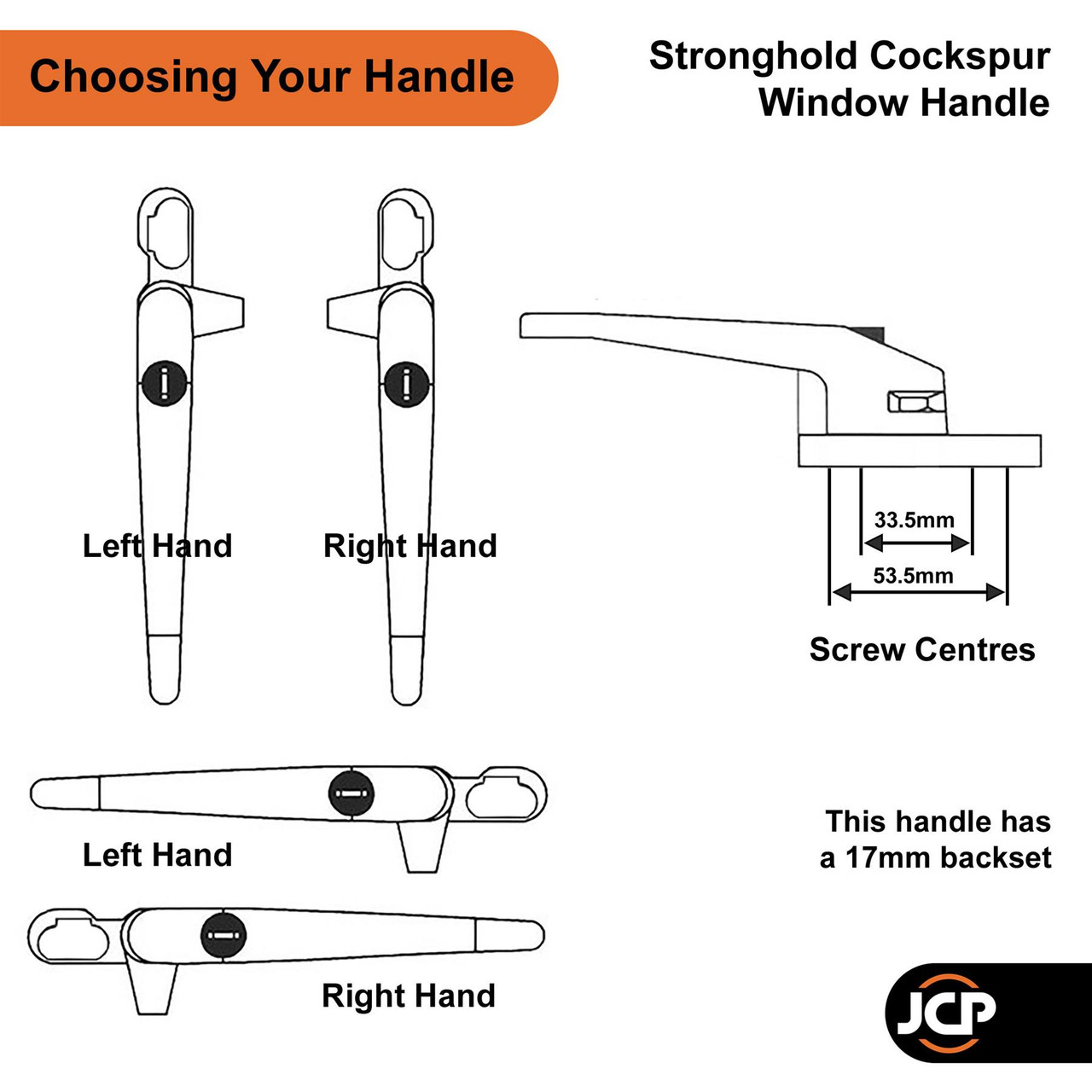

Please see dimensions diagram in gallery.

All measurements are approximate.

What do I need to check before ordering a handle?

Left or Right Hand?

First check the hand of your handle, for a top hung window that opens out - if the long part of the handle points to the left and the little spur points down you will need a left hand, if the long part of the handle points to the right and the little spur points down you will need a right hand. For side opening windows - if the long part of the handle points down and the little spur points to the right then you need a left hand handle, conversely if the long part of the handle points down and the little spur points to the left then you need a right hand handle. Please see image in gallery.

Which backset will I need?

To measure the backset (stack height) you will need to measure from the baseplate (the part that sits flat against the window) to the underside of the handle nose (please see diagram in gallery).

How to remove and replace a Cockspur window handle:

• Remove the screw cover cap to reveal two screws , unscrew and remove
• Move the handle to the open position which will show another two screws, remove as before
• Once all four screws have been removed the handle should come off
• Replace by lining up the new handle with the old screw holes
• Put the new screws in and secure into place
• Once the screws at the top and bottom of the base are fitted put the screw cover (if applicable) over the screw hole at the top of the base
