Egress Fire Escape Easy Clean Window Hinge Cotswold Sinidex Friction Stay Pair

The new EZ easi-clean range of egress stays from Cotswold, high quality products with a simpler operation and smoother action at a fantastic price. Conforming to all current British Building Standards and FENSA requirements. The new EZ range allows the window to be opened up to 89 fulfilling new part B regulations, ensuring emergency access in the event of a fire. A simple mechanism also allows the window to smoothly slide along the track and allows the window to be cleaned from inside the building.

These top quality hinges will give you improved security and weather sealing through the use of a Nylon reduced friction end cap. These stays have been designed to offer smooth closure and higher performance over standard window hinges, they are specially engineered to stay in any open position and offer high performance time after time. The new EZ easi-clean range of egress stays from Cotswold - No fiddly buttons, just large smooth thumb slides, perfect for easy cleaning and these hinges serve an even greater purpose - when it comes to escaping from a fire in your home these could literally be a life saver!

Screw Fixings: Screws for these hinges are not automatically included due to the wide variation of window material they could be used with. We do however, stock several types of screw which may be suitable for your window type in our shop.

Features:

• Supplied in pairs
• High-grade Ferretic stainless steel
• Proven 30,000 cycle guarantee
• Improved weather sealing
• BBA Approved
• Available in two stack Heights 13mm and 17mm
• Lengths Available of 12" and 16" Standard track width 18mm

What's in the pack?

1 x Pair of Selected Easi Clean Friction Window Hinges

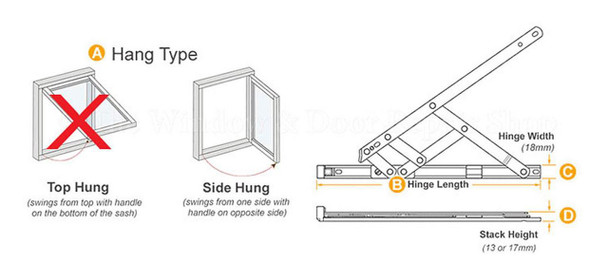

How should I measure my hinges?

A: First you need to establish the hanging type , do you require a top or side hung hinge? (N. B. These hinges are available in side hung only)

B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram below showing where the hinge length measurements are taken from. Hinges come in the following sizes: 12 or 16 inches long.

C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame. (Almost all window hinges will measure 18mm in width, but with windows that are very old the measurement could be 14mm and if this is the case this hinge will not unfortunately, fit.)

D: The final measurement that you need is the Stack Height, this measurement is the height of the hinge when closed, please see diagram. Stack heights come in two sizes 13mm or 17mm, so even if you are unsure you can usually calculate which is correct because of the 4mm difference.

At present what are the requirements laid down by the Buildings Regulations concerning egress windows?

The window should have an unobstructed openable area that is at least 0.33m2 and at least 450mm high and 450mm wide (the route through the window may be at an angle rather than straight through). The bottom of the opening area should not be more than 1100mm above the floor.

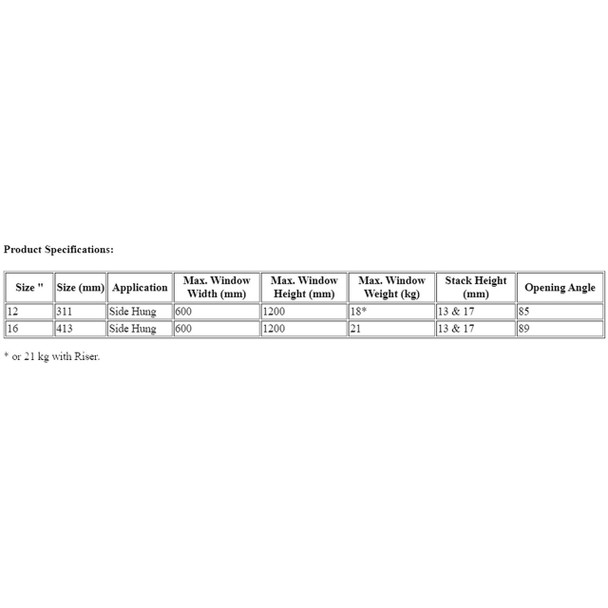

Product Specifications:

* or 21 kg with Riser.

How to use Easi Clean Hinges:

• Initial opening similar to Standard Side Hung Friction Stay
• Full opening up to 89 Providing clear egress in excess of 500mm on a 600mm wide vent
• Easy to operate thumb catches allow the vent to slide to the Easy clean position giving between 100 and 250mm clear opening
• To reset simply close the window and then re-open to go back to the egress position and close
• Conforms to BS6375 parts 1 and 2 - When fitting the SP312 /316 please observe. BS8213 Part 1: 1991 Code of practice for safety in use and during cleaning of windows
