Description

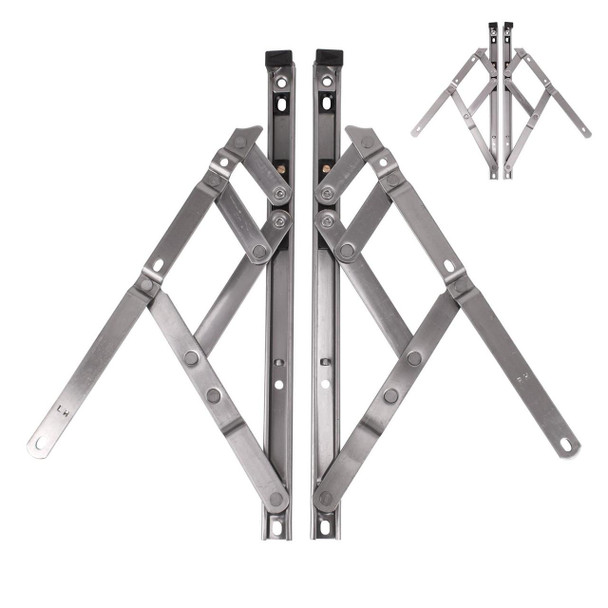

DGS Friction Window Hinges Replacement Pair Top Hung or Side Hung UPVC Double Glazing
The DGS Elite Friction Stay Window Hinge sets a new standard for quality and security, making it the perfect choice for homeowners and professionals seeking durable, reliable window hardware. This hinge is BSI and BBA approved, meaning it has passed the most stringent quality checks, ensuring long-lasting performance. With the added benefit of Secured by Design accreditation, it meets the highest standards for security, offering peace of mind that your windows are safer from forced entry. Its ferritic stainless steel construction provides excellent corrosion resistance, while the robust build ensures a smooth and precise closing action, even under repeated use. Ideal for homes exposed to harsh weather, this hinge boasts superior weather tightness, keeping drafts and moisture at bay.
Versatility is at the heart of the DGS Elite Friction Stay Hinge. Whether you're working with UPVC, timber, or aluminium window frames, this hinge fits seamlessly across a variety of window materials. It is available in multiple sizes for top and side hung sashes, making it adaptable to your specific window setup. Fully handed for ease of installation, this hinge is designed with both performance and convenience in mind. Its compliance with Document Q means it meets modern security requirements, making it the ultimate choice for those looking to enhance the security and functionality of their windows.
Features:
- British Standards Institution (BSI) Approved
- British Board of Agrément (BBA) Approved
- Secured by Design Accredited
- Fully complies with Document Q
- Enhanced Security
- Improved Weather Tightness

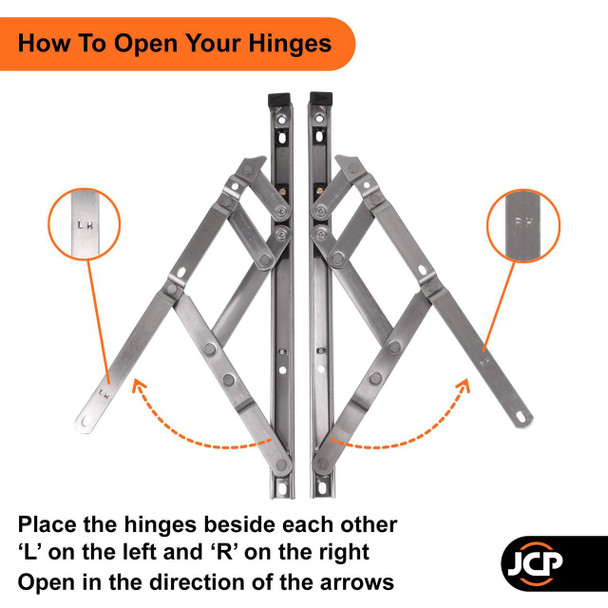

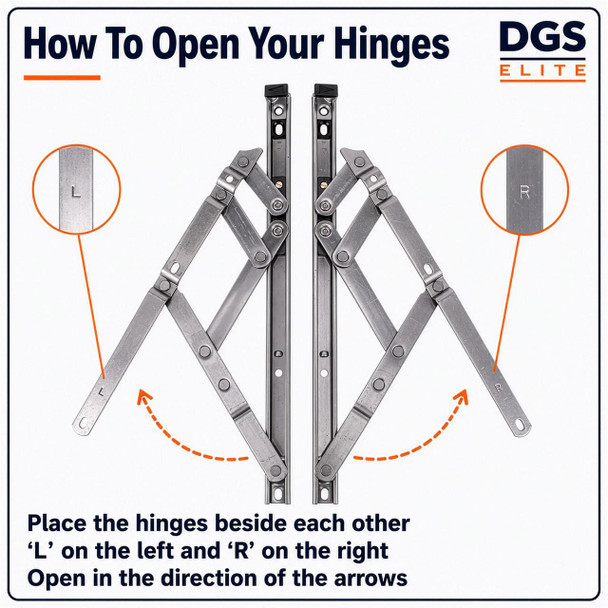

- Fully Handed
- Suitable for UPVC, Timber and Aluminium Windows
- Ferritic Stainless Steel
What's in the Pack?
1 x Pair of Selected Friction Window Hinges

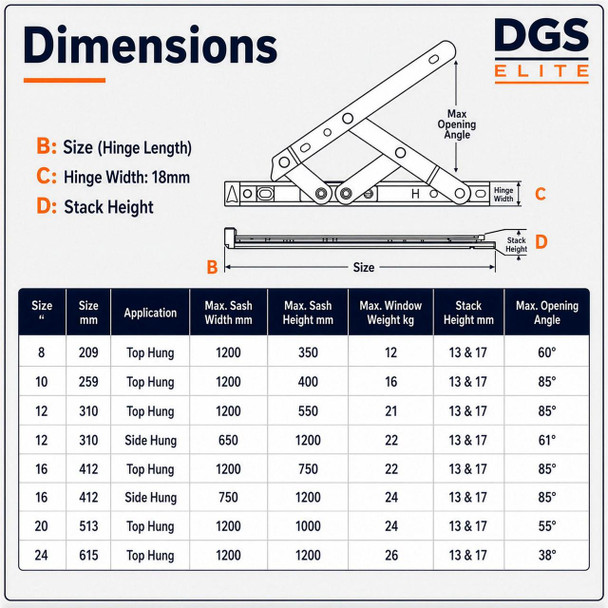

Dimensions:
- Track Width: 18mm

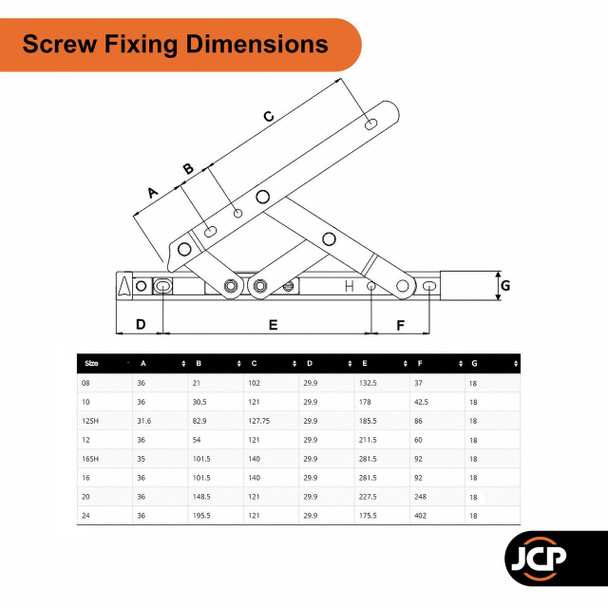

For all other dimensions please see the measurement diagrams in the image gallery.
All measurements are approximate.
How should I measure my hinges?
Please refer to the images in the gallery to guide you.

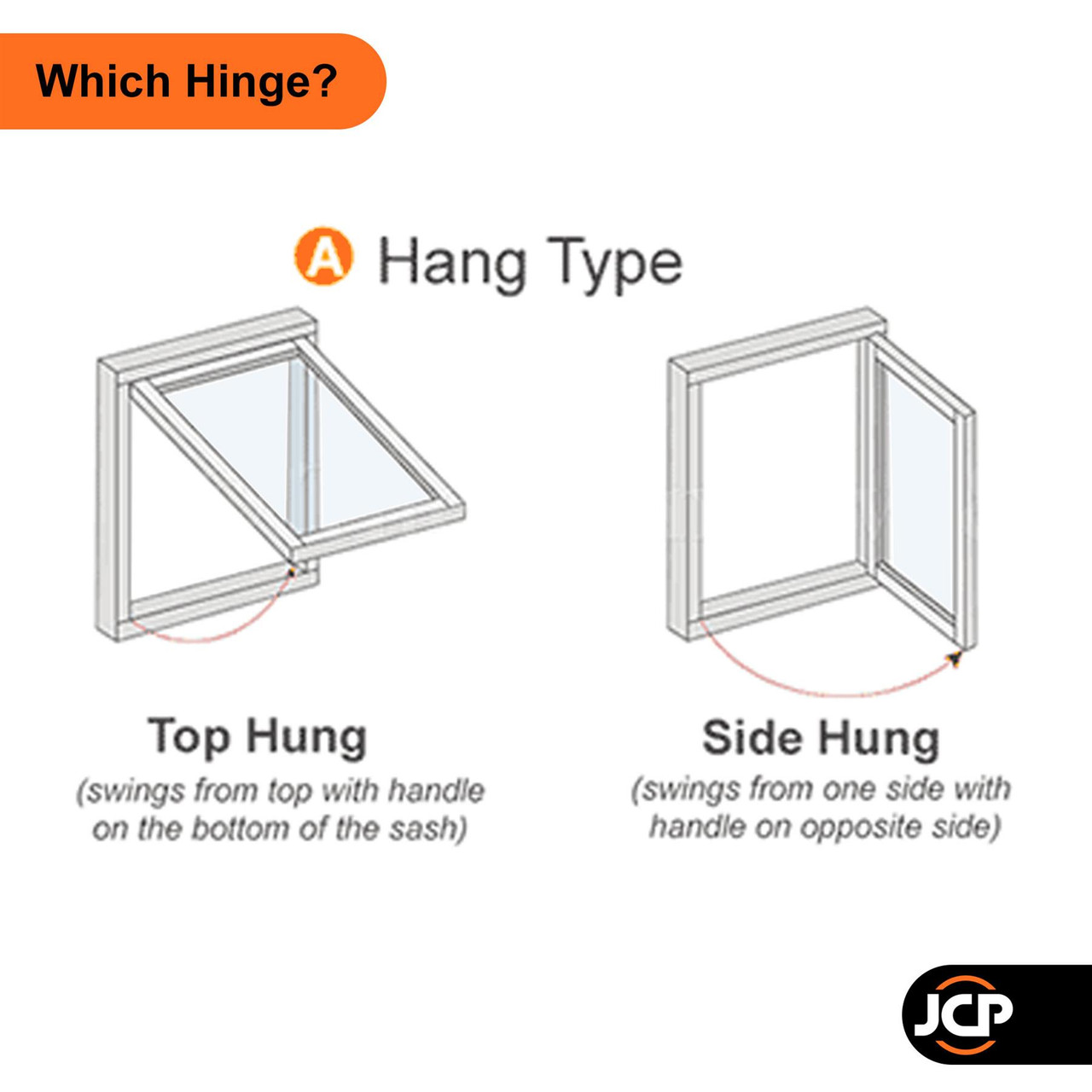

- A: First you need to establish the hanging type, do you require a top or side hung hinge?
- B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram in the gallery showing where the hinge length measurements are taken from. Hinges come in the following sizes: 8, 10, 12, 16, 20 or 24 inches long.
- C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame. (Almost all window hinges will measure 18mm in width, but with windows that are very old the measurement could be 14mm and if this is the case this hinge will not unfortunately, fit. We do however, offer an alternative hinge which may meet your requirements.)
- D: The final measurement that you need is the Stack Height, this measurement is the height of the hinge when closed. Stack heights come in two sizes 13mm or 17mm, so even if you are unsure you can usually calculate which is correct because of the 4mm difference.
Fitting Advice:
- 1. The friction hinge must be correctly positioned usually in a purpose designed groove in the extrusion, typically 18mm nominal wide track.
- 2. All fixing holes must be used to secure the friction stay.(With the exception of the top location hole used in the manufacturing process).
- 3. The hinge must be fitted so that, in the closed position, the centre of the vent arm lies parallel to the centre of the track.
- 4. The hinge should be fitted so that the end cap butts into the corner of the frame. The corner of the vent or weld sprue must not foul the end cap of the hinge.

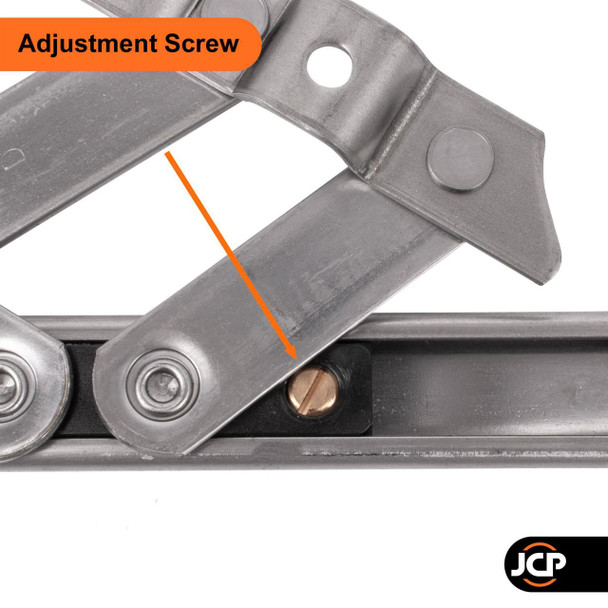

- 5. The friction device should be adjusted to give the required degree of resistance.
Item specifics
Hinge Track Width: |
18mm |
Material: |
Stainless Steel |
Priced and Sold in: |
Pairs |
