Ultion Sweet Composite UPVC Door Handle Pair 92/62 PZ 211mm Fixings Offset Lever Pad

Composite Offset Lever Pad Door Handle Pair UPVC Sprung Set 92/62PZ 211mm Fixings Ultion Sweet

The Ultion Sweet Composite Lever Pad Door Handle Pair, where sophisticated design meets unmatched durability. With its sleek, edgeless aesthetic, this handle set is designed to complement modern, traditional, and transitional home styles. Whether you’re replacing existing handles or completing a new door installation, the Ultion Sweet range adds a touch of elegance to your entryway. Available in seven striking finishes you can create a fully coordinated look across your door hardware, including knockers and patio handles.

Built for longevity, these handles exceed industry standards for durability and corrosion resistance. Rigorously tested to survive an incredible 800,000 operation cycles, they deliver smooth, reliable performance even with heavy daily use. Coated with multiple layers of brass and nickel, the Ultion Sweet handles resist corrosion from over 8,000 hours of saltwater exposure, far outlasting the standard EN1906 requirements. Backed by a 20-year anti-corrosion guarantee, these handles promise both style and performance for decades to come.

Please note:

• Every finish incorporates a curved backplate featuring a slim, 10mm recess to accommodate your euro cylinder lock, the overall backplate depth remains at 13mm; please make sure this is suitable for your current cylinder..

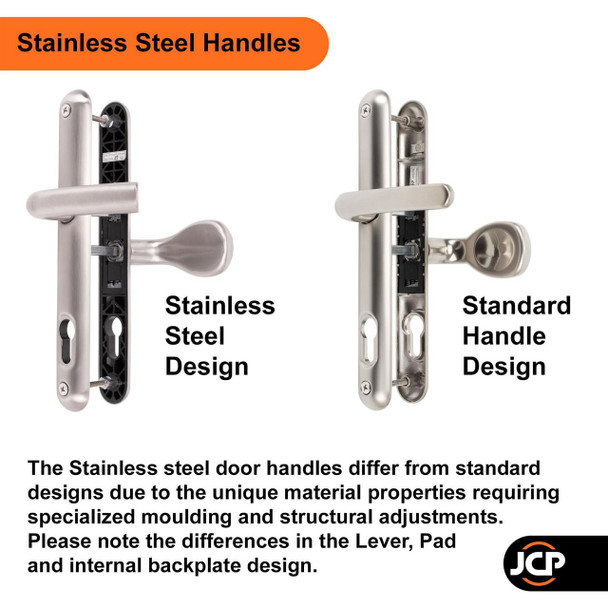

• The stainless steel handles feature a unique profile due to their specialised manufacturing process, including moulding techniques tailored to enhance durability and aesthetic appeal. Refer to product images for details.

Benefits:

• Complete Handle Set: Includes two perfectly matched backplates one with a lever and one with a pad, ensuring seamless style and function.
• Universal Compatibility: Fits door thicknesses ranging from 40mm to 77mm. Spindle and screws can be trimmed for a precise fit.

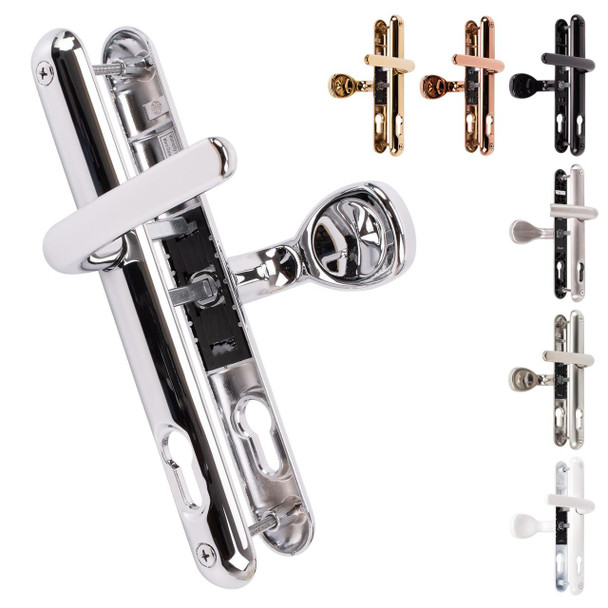

• Stylish Finish Options: Choose from seven elegant finishes all designed to match the Ultion Sweet hardware range.
• Unparalleled Durability: Exceeds EN1906 standards by surviving eight times the required operation cycles, ensuring buttery-smooth performance.
• Weatherproof & Corrosion-Resistant: Withstands 8,000+ hours of saltwater exposure, maintaining its pristine appearance in all conditions.
• Long-Lasting Quality: Supported by a 20-year anti-corrosion guarantee, offering peace of mind and enduring beauty. *
• Elegant Edgeless Design: Combines contemporary sophistication with universal appeal, ideal for any door style.
• Enhanced Backplate Cylinder Recess: Robust construction enhances door security while adding to the overall aesthetic.
• Effortless Maintenance: Designed for easy care, these handles retain their polished finish with minimal effort.

* Please register your purchase with the manufacturer, within 28 days of installation.

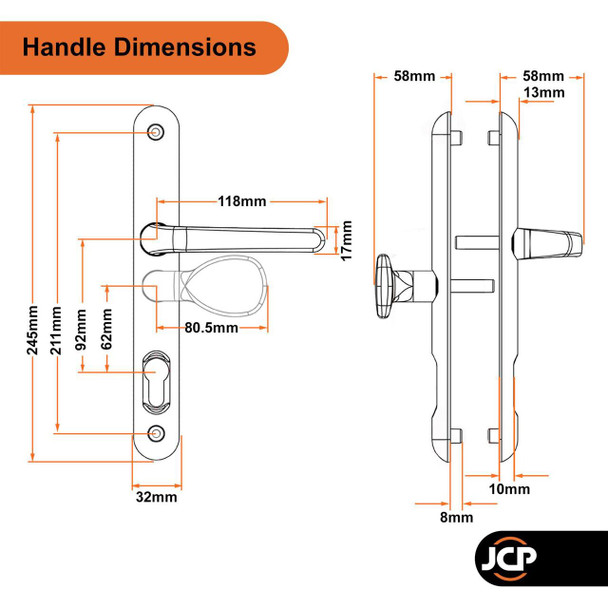

Dimensions:

• PZ Centres: 92mm & 62mm
• Backplate width: 32mm
• Backplate length: 245mm
• Backplate depth: 13mm (10mm in Cylinder Recess)
• Lever length: 118mm
• Pad length: 80.5mm
• Distance between screw hole centres: 211mm
• For doors from 40 - 77mm thick (spindle and screws may need to be trimmed)
• Spindle size: 8mm
• Spindle length: 70mm & 90mm
• Screw lengths: 60mm & 85mm

All measurements are approximate.

Please refer to the diagrams in the gallery.

Frequently Asked Questions:

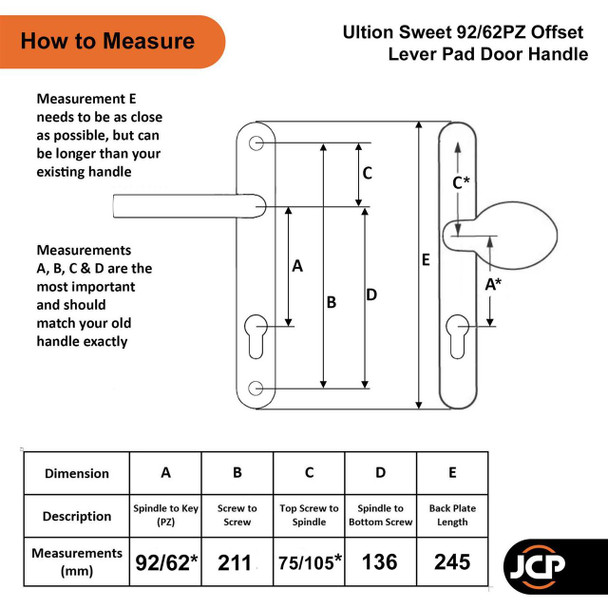

1. What measurements should I check before ordering a handle set?

The most critical measurements are:

• Distance between screw hole centres: This handle has a measurement of 211mm.
• Distance from the centre of the spindle to the centre of the barrel: This handle measures both 92mm and 62mm as it is offset (PZ Centres).
• The length and width of the handle are less critical since a slightly shorter or longer handle should not affect installation.

2. What does "sprung" mean in door handles?

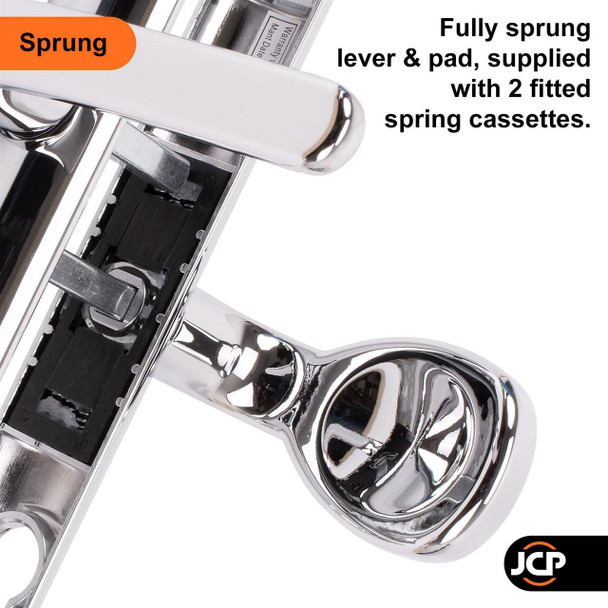

A "sprung" handle has a spring mechanism fitted to return the handle to its original position after use. To determine whether you need a sprung or un-sprung handle, remove your current handle and operate the lever.

• If a spring is fitted, you need a sprung replacement.
• An un-sprung handle can be replaced with a sprung one, but sprung handles must always be replaced with the same.

3. Is the Ultion Sweet 92PZ handle compatible with all door locks?

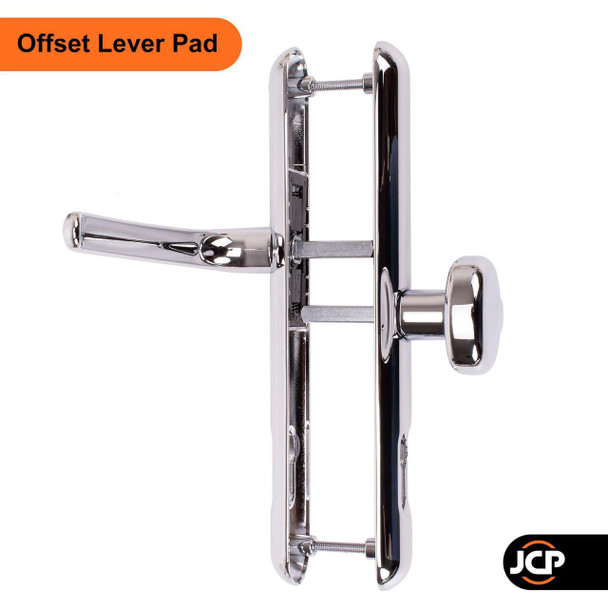

The handle is designed to fit most 92PZ multipoint door locks. Please note that this is an offset handle (92/62mm). Ensure your lock's specifications match the critical measurements provided for a seamless fit.

4. What is included in the Ultion Sweet 92/62PZ handle set?

The set includes:

• A pair of Ultion Sweet 92/62PZ Lever/Pad Door Handles with 211mm fixings.
• Four trimmable spindles (two 70mm & two 90mm).

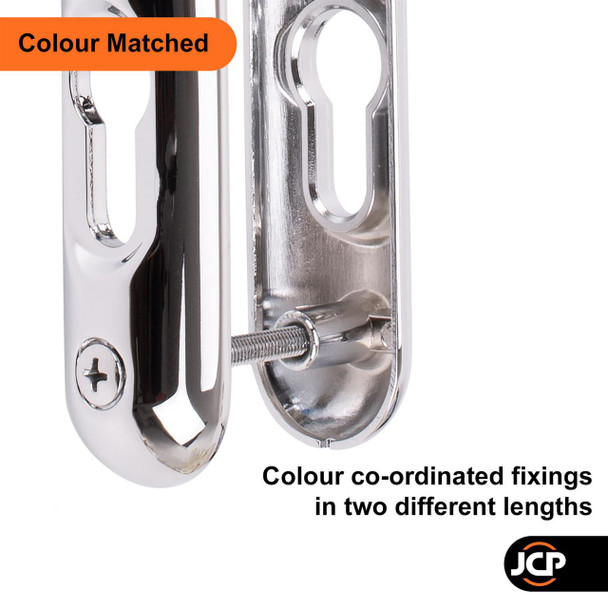

• Four trimmable screws (two 60mm and two 85mm screws).
• Two fitted spring cassettes.

5. How durable is this door handle in challenging weather conditions?

The handle is robustly constructed from zinc alloy and has undergone:

• Cycle testing for over 800,000 operations.
• Salt-spray testing for over 8000 hours. That’s an incredible 30 x more time than required for the flagship EN 1906:2012 corrosion standard.

6. How do I care for my Ultion Sweet Handles?

• Wipe every three months with a soft damp cloth and warm and mild soapy water to remove any surface build up of dirt.
• Then rinse with clean water and dry with a soft cloth.
• Please don’t use chemicals, brass cleaners, scouring pads, wire wool etc., it won’t respond well!
• Whilst Sweet is coated lots of times to produce the deepest and best possible finish it is recommended to avoid contact with anything that may cause scratches.
