Maco CTS Door Lock Gearbox 92PZ 92mm 35mm 45mm Backset for uPVC & Composite door
- SKU:
- MAC-CTS-B54-111
- Backset:
- 35mm, 45mm
- PZ:
- 92mm
- Spindle:
- Split
Maco CTS Door Gearbox 92PZ 35mm or 45mm Backset Split Spindle - Genuine Multipoint Lock Mechanism
Professional-grade multipoint lock replacement gearbox for reliable door security
Maco CTS Door Gearbox 92PZ delivers dependable locking performance for your uPVC and composite door multipoint lock system. This genuine Maco replacement gearbox features a split spindle design that allows flexible operation with either lever/lever or lever/pad door handle configurations, making it perfect for both residential and commercial door security applications.
Engineered with precision German manufacturing standards, this universal door lock gearbox fits both left and right-handed doors and connects seamlessly to your existing multipoint locking points. The robust latch and deadbolt mechanism ensures your door hardware operates smoothly while maintaining optimal door security for years to come.
Key Benefits:
- Universal Door Hardware Design – Fits both left and right-handed uPVC and composite doors for maximum compatibility
- Split Spindle Door Handle Flexibility – Accommodates lever/lever or lever/pad door handle configurations for enhanced security options
- Genuine Maco Lock Quality – Authentic German-engineered replacement door lock component with superior durability
- Dual Backset Door Lock Options – Select 35mm or 45mm backset multipoint lock requirements
- Easy Multipoint Lock Repair – Direct replacement for existing Maco CTS multipoint lock systems

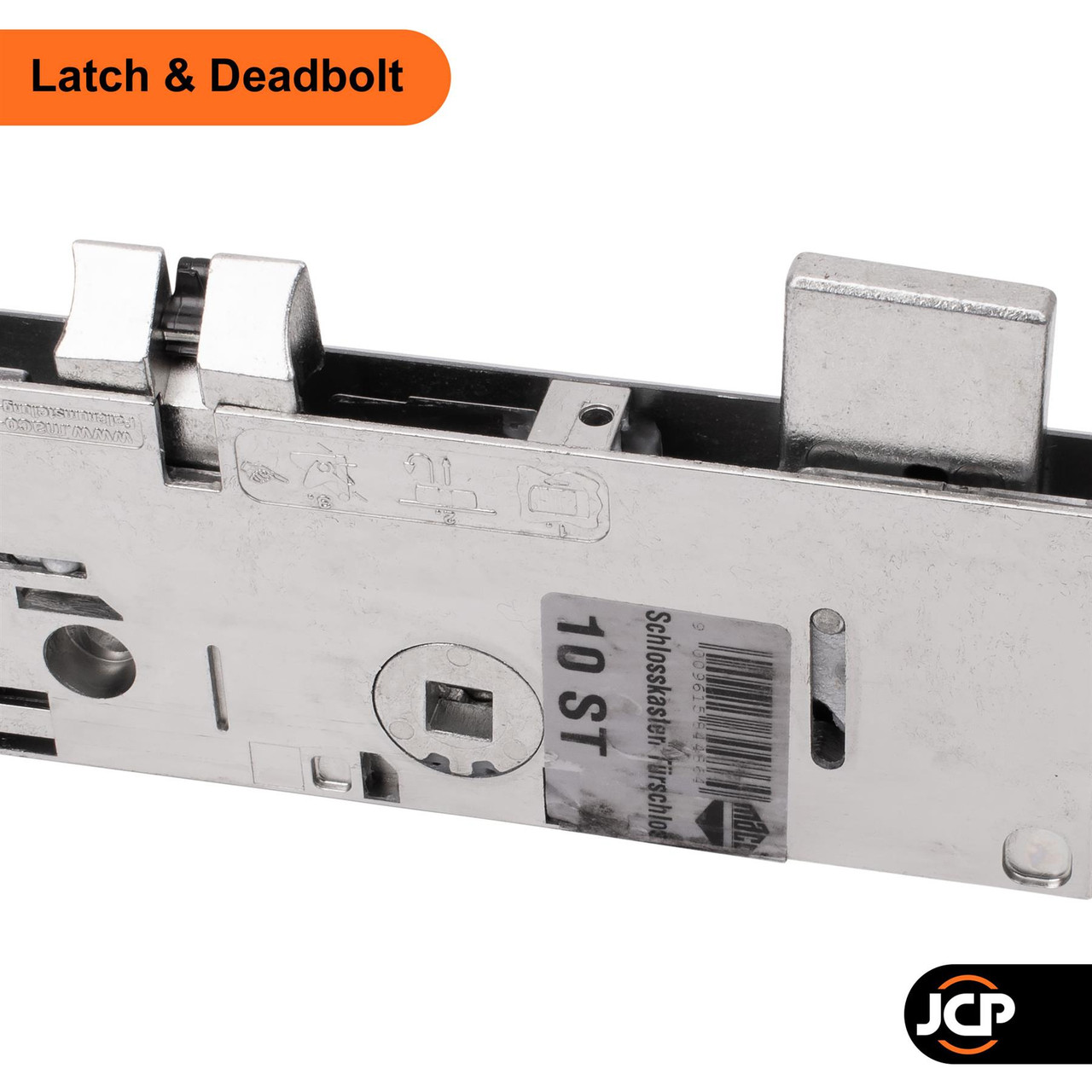

- Latch & Deadbolt Door Security – Provides both day-to-day convenience and night-time door security
- Euro Cylinder Compatibility – Works seamlessly with standard euro cylinder door locks
- Smooth Door Lock Operation – Lift lever mechanism for engaging multiple door locking points
Product Specifications:
- Brand: Maco
- Model: 5ST 242411N

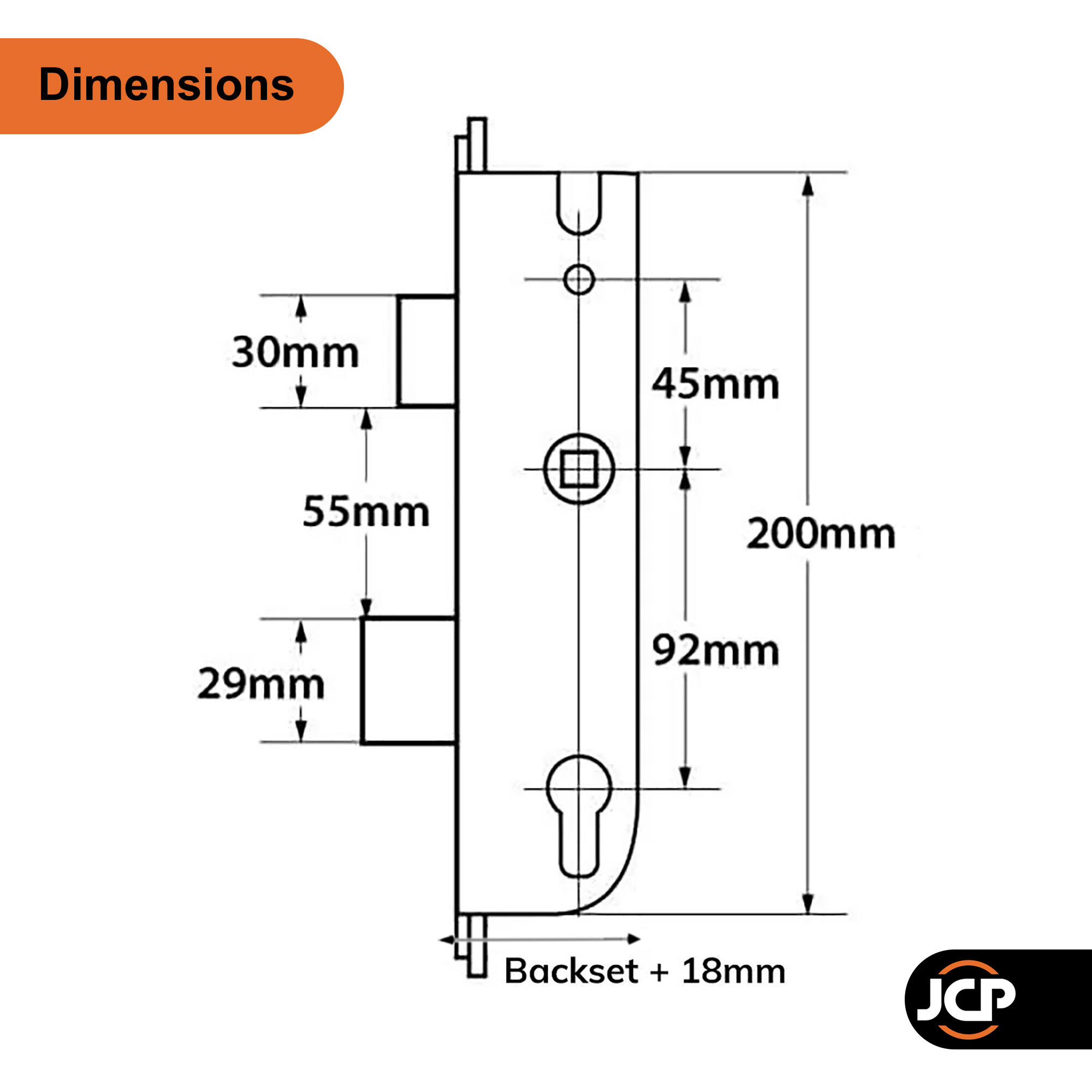

- PZ Centres: 92mm

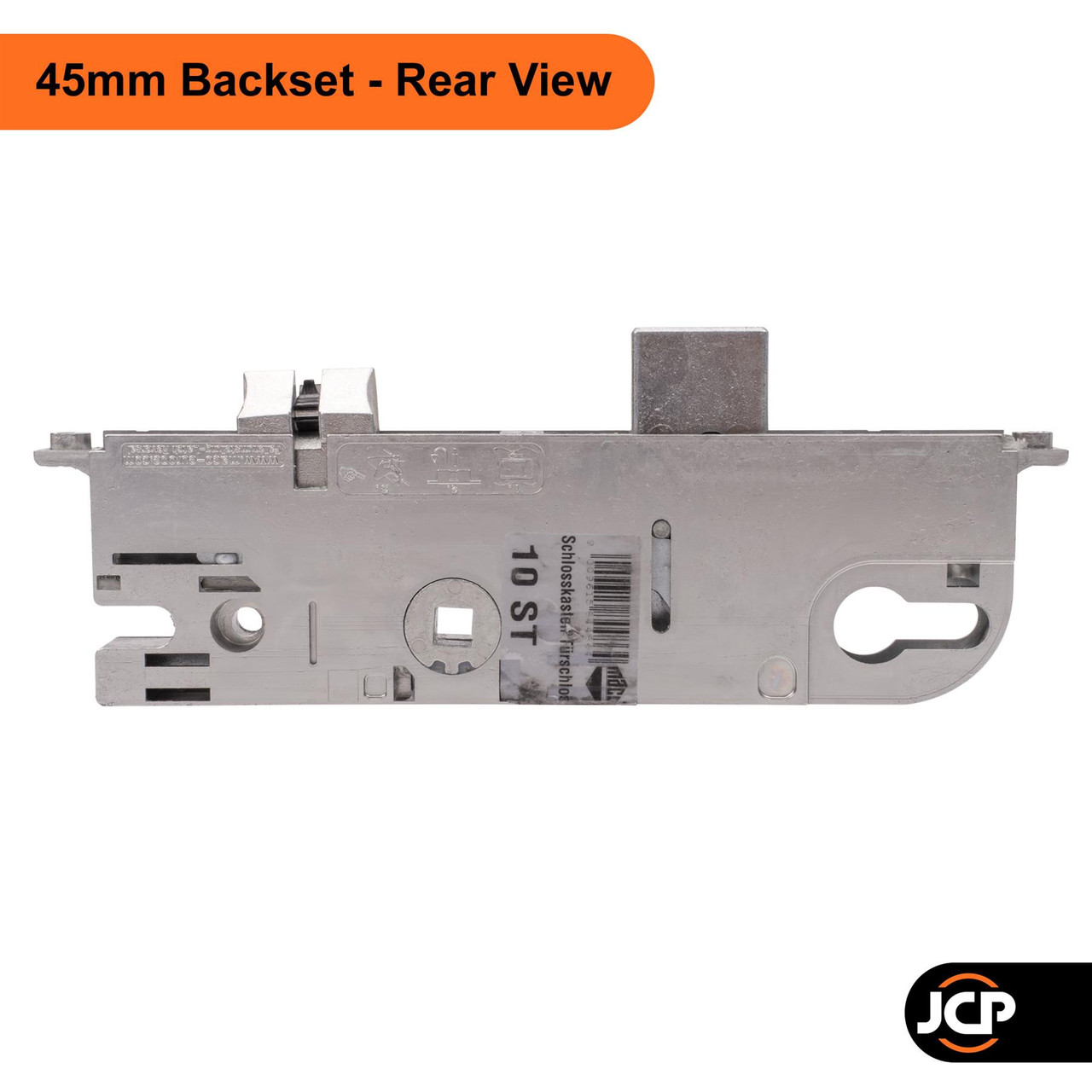

- Backset: 35mm or 45mm

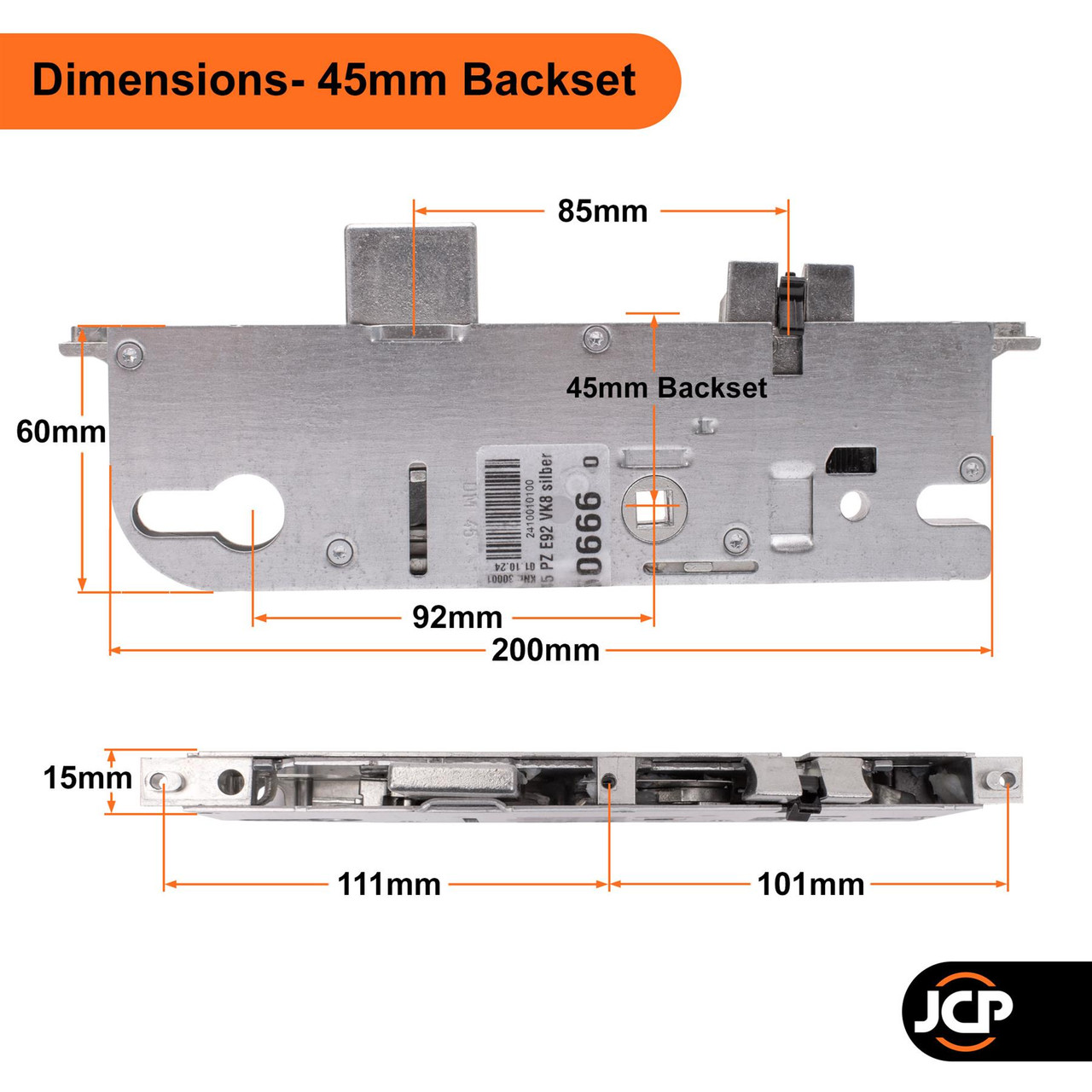

- Gearbox Length: 223mm
- Gearbox Height: 35mm Backset 50mm, 45mm backset 60mm
- Gearbox Width: 15mm
- Deadbolt Width: 30mm
- Latch Width: 30mm
- Distance Between Screw Holes: Top to centre screw hole 101mm, Bottom to centre screw hole 111mm
- Spindle Type: Split 8mm
- Cylinder Type: Euro
- Handing: Universal (left or right)
- Operation: Lift Lever or Split Spindle Nightlatch
- Function: Latch & Deadbolt
- Configuration: Lever/Lever or Lever/Pad
Please measure your existing gearbox carefully to ensure compatibility.
Pro Tips:
Pro Tip: Before installation, photograph your existing lock configuration and note the orientation of all components. This genuine Maco gearbox is designed as a direct replacement, but taking reference photos will ensure a smooth installation process.
Important Information:
Installation Requirements: When using the split spindle, the male spindle must be on the inside and the female spindle on the outside. Also, the screw holes are unthreaded so the use of the existing self-tapping screws is required for proper installation.
Package Contents:
- 1 × Maco CTS Door Gearbox (Model 5ST 242411N) (backset as selected)
Frequently Asked Questions:
Will this door lock gearbox fit my existing Maco multipoint lock?
This door gearbox is designed to fit Maco CTS multipoint lock systems with 92mm PZ centres and 35mm or 45mm backset. Check your existing door lock measurements to confirm compatibility before ordering this replacement door lock component.
What's the difference between lever/lever and lever/pad operation?
The split spindle design allows you to choose: lever/lever uses handles on both sides, while lever/pad uses a handle inside and a fixed pad outside for enhanced security.
What version of the Maco CTS gearbox will I receive?
Current orders for Maco CTS door gearboxes supply the latest MK5 C-TS version (also referenced as "New Type" in some documentation). This updated iteration maintains complete backward compatibility with all previous C-TS multipoint lock installations whilst featuring enhanced materials and manufacturing refinements. The MK5 retains the standard 35mm/45mm backset and 92mm PZ specifications, ensuring seamless replacement of earlier C-TS door lock systems. When utilising the split spindle function, you may require additional components such as a split spindle pin or screw-on pad handle - whilst this door gearbox includes the split spindle capability, the connecting hardware is typically available separately as a "split spindle kit."
Is this compatible with older Maco door lock systems?
This Maco CTS door gearbox is specifically designed for the C-TS multipoint lock range, which superseded the earlier G-TS series around 2012. The original G-TS door locks (commonly installed on doors from the early 2000s) featured different dimensional specifications and locking point arrangements. If you're upgrading from an older G-TS multipoint lock system, please note that the C-TS locking point positions differ from the G-TS configuration, which means existing frame keeps may not align correctly. This upgrade scenario typically requires adjustment or replacement of the door frame striker plates to ensure proper door lock operation. This CTS door gearbox is engineered specifically for C-TS multipoint locks and is not interchangeable with G-TS door lock systems.
Do I need any special tools for door lock installation?
Basic DIY tools are sufficient for this multipoint lock repair - screwdrivers, measuring tape, and possibly a chisel for adjustments. The door lock gearbox is designed as a direct replacement for existing Maco CTS door lock systems.
How do I measure the PZ (centres) distance?
PZ stands for the distance between the centre of the spindle hole (where the handle spindle goes through) and the centre of the cylinder hole (where the euro cylinder fits). Measure from the centre of one hole to the centre of the other - this should be 92mm for this gearbox.
How do I measure the backset?
The backset is the distance from the centre of the spindle hole to the edge of your door. Using a ruler or tape measure, measure from the centre of the spindle hole straight to the door edge. This will be either 35mm or 45mm. When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip. This universal gearbox accommodates both backset sizes.
What tools do I need for measuring?
A simple ruler or tape measure is sufficient. For accuracy, measure to the nearest millimetre. If you're unsure, take a photo of your existing lock with a ruler for reference when ordering.
How can I identify if this is the correct Maco gearbox for my door?
This gearbox features a distinctive "soft" latch, which appears to be split in half. They are held onto the faceplate with 3 screws. The top screw to the centre measures 102mm and the centre screw to the bottom screw measures 110mm. If your lock looks like a C-TS but has the top corner of the gearbox missing, it's probably an A-TS version, which is automatic locking. However, it's worth noting that Maco offers different variants of these latches, so this latch design is not conclusive when identifying this specific lock. Always verify compatibility using the measurements (92mm PZ centres and 35mm or 45mm backset) rather than relying solely on visual identification.
What installation considerations should I be aware of?
When using the split spindle, the male spindle must be on the inside and the female spindle on the outside. Also, the screw holes are unthreaded so the use of self-tapping screws is required for proper installation.
Why Choose Maco CTS Door Gearbox?
When your multipoint door lock starts showing signs of wear, choosing a genuine Maco replacement door gearbox ensures your uPVC or composite door continues to operate with the same precision and reliability you expect. Maco's reputation for German engineering excellence in door hardware means this multipoint lock gearbox will provide years of dependable door security service, maintaining your home's protection while operating smoothly every day. The universal door lock design and flexible door handle configuration options make this the ideal choice for both DIY enthusiasts and professional door lock installers seeking a quality replacement door lock component that fits first time, every time.
