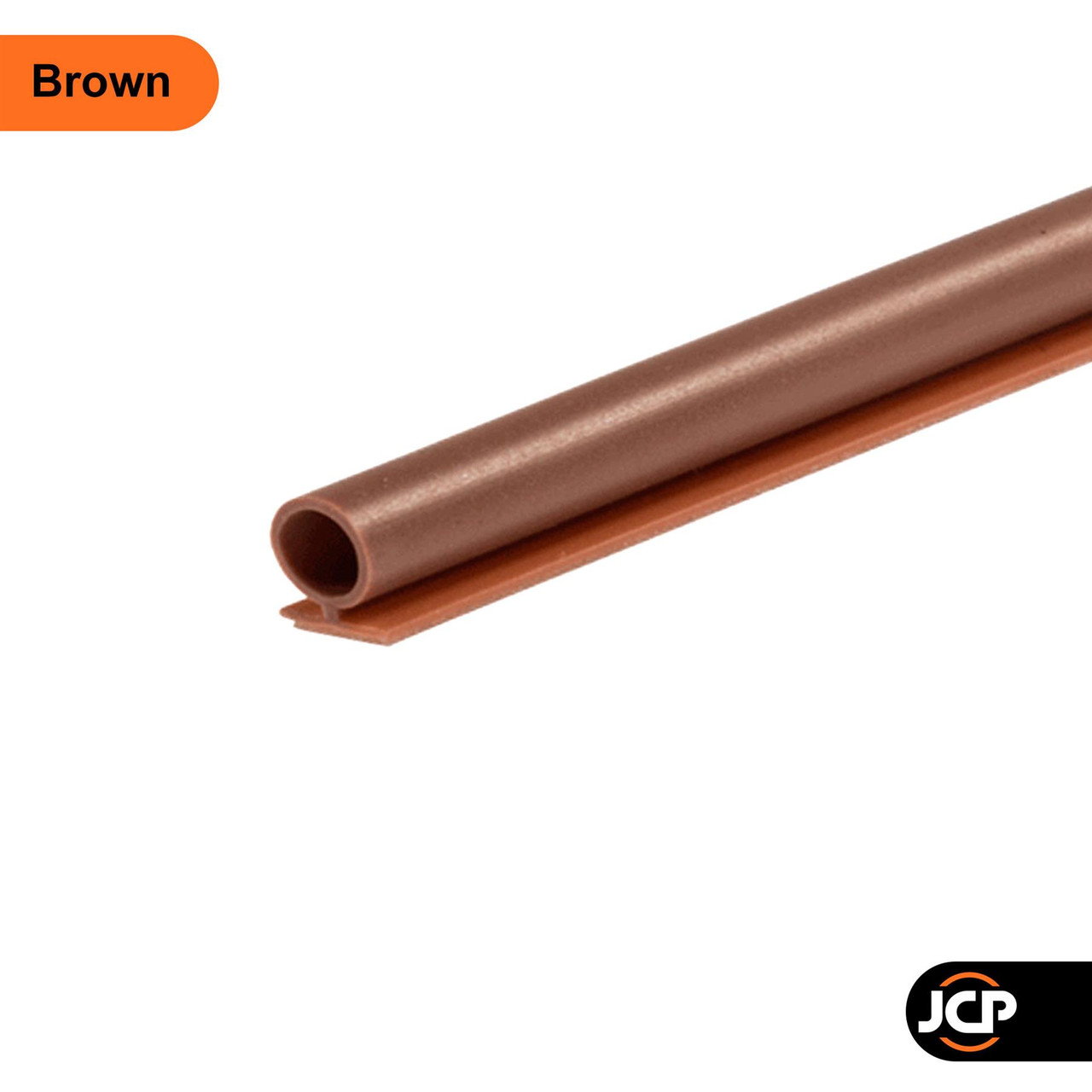

JCP Bubble Gasket Self Adhesive Seal for Wood Windows and Door Frames 5.5mm

JCP Self Adhesive Timber Window & Door Frame Bubble Gasket - Premium Double Glazing Seal

High-performance Silplex material seal with superior weatherproofing and 100,000 cycle-tested durability.

JCP Self Adhesive Bubble Gasket provides exceptional protection against draughts, moisture and noise for your timber windows and doors. Designed with advanced Silplex (TPE) technology and a rigid Polypropylene foot, this premium sealing solution offers outstanding deflection recovery and acoustic properties while being remarkably easy to install.

This versatile gasket effectively seals gaps between 2mm and 5mm, creating a reliable barrier against the British weather. The bubble profile ensures greater contact area than flipper seals, while the high-grade adhesive backing guarantees secure attachment to your timber frames without the need for routing or specialist tools.

IMPORTANT: All orders are supplied in continuous lengths. Multiple metres = one continuous piece, not separate 1m pieces.

Key Benefits:

• Superior Weather Protection – Creates an effective barrier against wind, rain and cold air, helping reduce heating bills and improve comfort.
• Exceptional Durability – 100,000 cycle tested with no loss in air leakage performance, ensuring long-lasting effectiveness.
• Impressive Recovery Properties – Advanced Silplex material returns to original shape after compression, maintaining an effective seal year after year.
• Acoustic Performance Compliance – Meets Approved Document E requirements for sound resistance in timber door sets, reducing external noise transmission.
• Temperature Resistant – High performance over extreme temperatures, resistant to cracking and distortion through freezing winters and hot summers.
• Paint & Varnish Compatible – Resilient to most paints and varnishes, allowing for decoration without compromising seal integrity.
• Enhanced Usability – Reduces opening and closing forces on windows while maintaining an effective seal.

Product Specifications:

• Brand: JCP
• Bubble Material: Silplex (TPE)
• Foot Material: Polypropylene (adds rigidity for better insertion and retention)
• Gap Size Suitability: 2mm to 5mm
• Colours Available: White, Brown, Black
• Adhesive Type: High-performance self-adhesive tape
• Application: Timber window and door frames
• Weather Resistance: UV and ozone stable
• Supply Length: Available in 50m coils
• Testing: 100,000 cycle tested with no performance loss

Please note: All measurements are approximate. When measuring for installation, we recommend adding approximately 6cm to your required length to avoid cutting the gasket too short.

Pro Tips:

Pro Tip: For the best adhesion, clean the application surface thoroughly and ensure it's completely dry before applying. This versatile seal can be used on both the top and bottom of sash windows for complete draught-proofing.

Package Contents:

• 1 × JCP Self Adhesive Bubble Gasket (length as ordered)

Installation Guide:

1. Measure carefully: Determine the required length, adding approximately 6cm extra to avoid cutting too short.
2. Prepare the surface: Ensure the timber frame is clean, dry and free from dust, grease or loose paint. Wipe with isopropyl alcohol for best results.
3. Temperature check: Ideally install when ambient temperature is between 10°C-30°C for optimal adhesive performance.
4. Remove backing: Carefully peel back a small section of the release liner, taking care not to touch the adhesive surface.
5. Position correctly: Align the gasket with the edge of the timber beading where it will contact the window or door.
6. Apply gradually: Press firmly while slowly peeling away more backing, working along the length in sections.
7. Secure adhesion: Once positioned, apply firm pressure along the entire length to ensure proper bonding.
8. Trim if necessary: Use sharp scissors to trim any excess at corners or joins for a neat finish.
9. Allow setting time: For best results, allow 24 hours before fully testing the window or door operation.

For corner joints, simply butt the ends together for a neat finish. The gasket can be applied to the top and bottom of sashes or around the entire perimeter as needed.

Frequently Asked Questions:

Is this gasket suitable for both new builds and retrofitting?
Yes, this versatile bubble gasket is designed for both new build and retrofit applications, making it an ideal solution for any timber window or door project.

How does this compare to flipper seals?
The bubble design provides a greater contact area with the window than flipper seals, offering superior sealing while requiring less force to open and close the window.

Will this seal work if I plan to paint or varnish my windows?
Yes, the Reddiseals bubble gasket is resilient to most paints and varnishes, allowing you to finish your timber frames without compromising the seal's performance.

Does this gasket meet any acoustic standards?
Yes, this product complies with the requirements of Approved Document E, which provides guidelines on acoustic resistance to the passage of sound in timber door sets, helping create a quieter indoor environment.

Why Choose JCP Bubble Gasket?

JCP premium Silplex bubble gasket represents the perfect balance of professional-grade performance and DIY-friendly installation. The rigid Polypropylene foot adds stability while the Silplex bubble provides exceptional sealing properties that maintain effectiveness even after 100,000 cycles of use. Unlike basic seals that compress and lose effectiveness over time, this advanced gasket maintains its shape and sealing properties through years of use. By choosing this high-performance solution, you're investing in lasting comfort, improved energy efficiency, and protection against the British weather for years to come.
