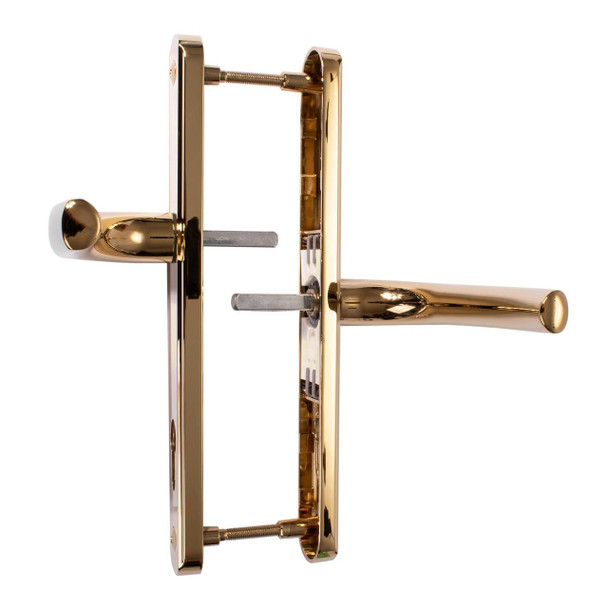

greenteQ Alpha UPVC Door Handle Pair 92mm 62mm PZ Offset

Alpha UPVC Door Handle Set 92/62mm Lever Offset Pair 215mm Fix 250mm Backplate

The greenteQ Alpha sprung lever offset door handle set comes with a durable finish: is manufactured in a metal alloy and is designed to be fully reversible to fit both left or right hung doors. The return springs are fitted over the spindles, ensuring the handle is held at 90° with no sag. Fixing lugs are supplied on both backplates for a secure fit and M6 screws for improved strength and security.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Supplied as a pair complete with 2 spindles
• M6 screws for improved strength and security
• Universal handing, levers are fully reversible by design
• Metal alloy construction
• Supplied with fixings for PVCu, timber doors

What's in the pack?

1 x Set of greenteQ Alpha 92/62PZ Lever Offset Door Handles

4 x Spindles

4 x M6 Screws

Dimensions:

• PZ Centres: 92/62mm
• Backplate width: 32mm
• Backplate length: 250mm
• Backplate depth: 11mm
• Lever length: 132mm
• Distance between screw hole centres: 215mm
• To suit door thickness: 62 - 72mm
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 215mm between screw holes) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 92mm on the internal lever and 62mm on the external lever). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

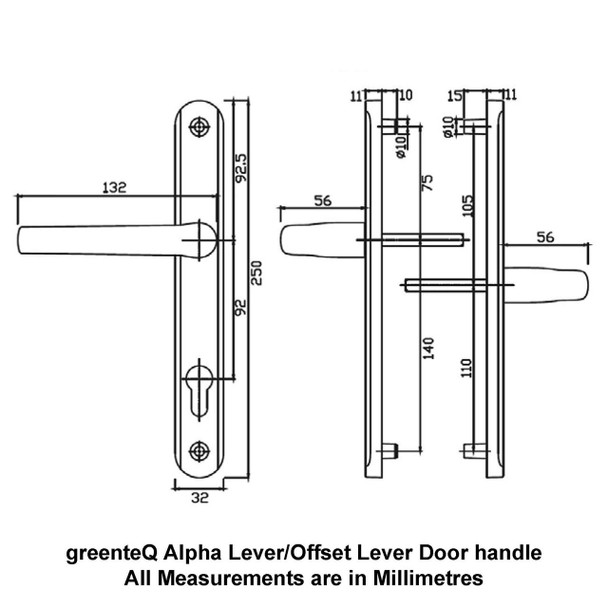

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
