TSS UPVC Door Handle Pair 92mm PZ 210mm Fixings

No yet Review(s) Write a Review

£12.21

SKU:

TSS-210-BC9-2PZ

Handing:

Left & Right

PZ Centres:

92mm

Screw Centres:

210mm

Spindle:

8mm

Sprung:

Yes

Type:

Lever/Lever

Product Description
Product Reviews
Shipping & Returns

TSS UPVC Door Handle Set 92PZ 92mm Lever Pair 210mm Fixing

This contemporary door handle design from TSS features an elegant sprung handle and enhanced levers giving a comfortable easy grip. The levers are fixed to the backplate and by design, the handles are fully reversible. Spring cassettes are provided to place over the spindle to allow the levers to be sprung. Lever set on the backplate for exterior doors, to suit most 92PZ multipoint locks. Fixing lugs are supplied on both backplates for a secure fit. Supplied with colour co-ordinated fixing screws, return springs and spindle to suit door thickness from 60mm up to 72mm.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

Supplied as a pair complete with spindle, spring cassettes and screws
Universal handing, levers are fully reversible by design
Sprung version as standard
Material: Zinc Alloy
Compatible with most 92PZ multipoint door locks

What's in the pack?

1 x Set of TSS 92PZ Lever Lever Door Handles 210mm

1 x Spindle

1 x Screw Pack

2 x Spring Cassettes

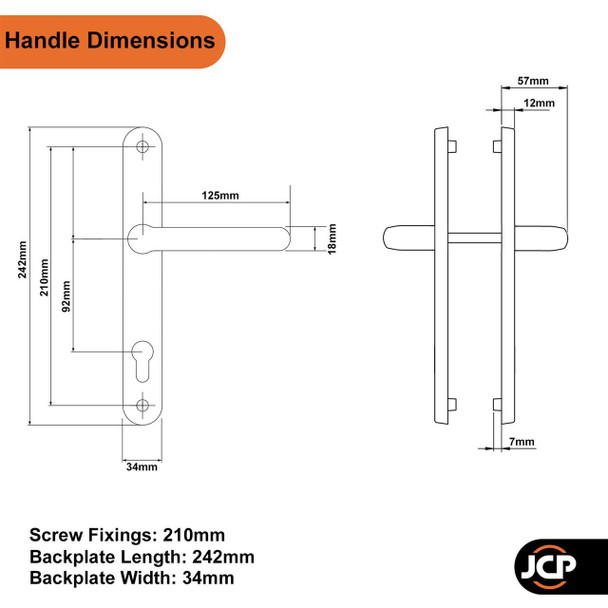

Dimensions 210mm Fixings:

PZ Centres: 92mm
Backplate width: 34mm
Backplate length: 242mm
Lever length: 125mm
Distance between screw hole centres: 210mm
Top screw hole to centre of spindle: 75mm
Bottom screw hole to centre of spindle: 135mm
For doors from 60 - 72mm thick
Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle is 210mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

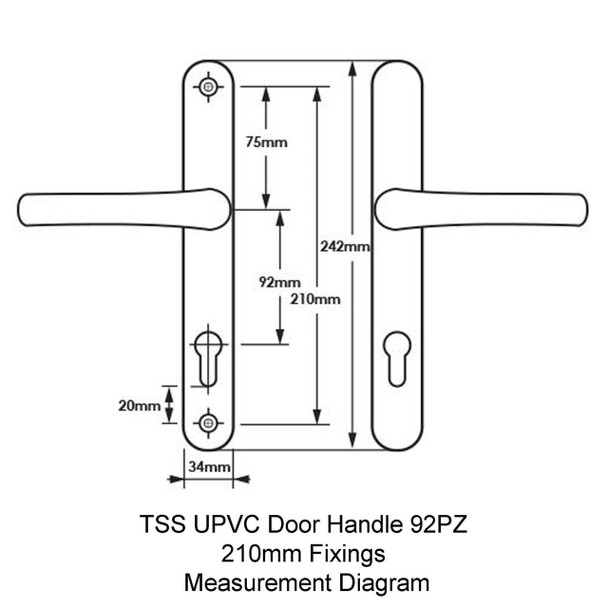

Important, please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however, if your existing handles are sprung they must be replaced with the same.
