Wedge Gasket Sample Pack EPDM TPR PVC for uPVC, Aluminium Windows Doors GSAMP8

Reddiplex Wedge Gasket Sample Pack Replacement Rubber Seal for uPVC, Aluminium Windows Doors GSAMP8

Find the perfect wedge gasket replacement for your windows and doors with this comprehensive sample pack

Reddiplex Wedge Gasket Sample Pack offers you the perfect solution to identifying the exact replacement wedge gasket you need for your windows and doors. These essential components create a watertight and draught-tight seal between the glass and the frame. No more guesswork or wasted purchases - simply compare your existing gasket with our 9 different sample types to find your perfect match. Each sample comes clearly numbered with an enclosed identification sheet, making the process of ordering your required length quick and straightforward.

This professional-grade sample pack includes EPDM, PVC, and TPR gasket materials, meeting British Standards for performance and durability. Each sample measures approximately 50-100mm in length, giving you ample material to test the fit and compatibility with your existing fixtures. Upgrade your window and door seals with confidence and effectively prevent draughts, water ingress, and heat loss while improving your home's energy efficiency and comfort.

Key Benefits:

• Precise Identification – Eliminate the frustration of ordering incorrect gaskets by visually matching your existing seal with our 9 different options
• British Standards Compliance – Materials meet requirements of BS7412, ensuring quality and performance
• Outstanding Weather Protection – Superior sealing properties ensure consistent protection against rain and wind
• Weather Resistance – Excellent resilience against UV exposure, ozone, and temperature fluctuations for year-round protection
• Draught Elimination – Correctly fitted gaskets significantly reduce heat loss, helping lower energy bills whilst improving comfort
• Simple Ordering Process – Once you've identified your required gasket using the enclosed identification sheet, ordering the exact length needed is straightforward
• Professional-Grade Materials – High-performance gaskets designed for both dynamic and static applications
• Cost-Effective Solution – Sample pack eliminates expensive trial-and-error purchases of full-length gaskets

What is a Wedge Gasket?

A wedge gasket (also known as a glazing wedge or wedge seal) is a specific type of compression seal designed to:

• Hold glass securely in the frame or sash
• Provide weatherproofing by sealing gaps between the glass and frame
• Help absorb movement caused by thermal expansion or structural shifts
• Reduce rattling and vibration in the window unit

Installation Position:

The wedge gasket is installed between the glass unit and the frame:

1. After the glass unit has been positioned in the window frame (or door frame)
2. A "setting block" or bead is often used to position and support the glass at the bottom
3. Once the glass is aligned, the wedge gasket is pushed into the gap between the edge of the frame and the glass, typically from the inside. The gasket's shape allows it to locate into the profile groove for a secure fit.
4. It compresses against the glass, holding it firmly in place and forming a tight weatherproof seal

Product Specifications:

• Brand: Reddiplex
• Materials: EPDM, PVC and TPR rubber compounds
• Sample Quantity: 9 different gasket types
• Sample Size: Approximately 50-100mm per sample
• Standards Compliance: BS7412
• Application: uPVC and Aluminium windows and doors
• Type: Wedge gaskets
• Installation Method: Simply push the gasket into the gap between the glass and frame to create a secure, weathertight seal
• Colour: Black (alternative colours available for certain profiles)

All measurements are approximate and may vary slightly. Please use the enclosed identification sheet to confirm exact profile matches.

Material Properties:

• EPDM: Most commonly specified gasket material, outstanding product memory, excellent recovery following compression, high tensile strength, non-stretch with high tenacity cord, performance maintained in low temperatures
• PVC: Highly flexible, excellent cushioning properties, good chemical resistance, durable in varying weather conditions, maintains seal integrity across temperature fluctuations
• TPR: High deflection recovery, no migration, unaffected by most aqueous oils and oil-based fluids, resistant to abrasion and flex fatigue, co-extrusions/duplex options, superior ageing properties, ozone resistant, UV stable

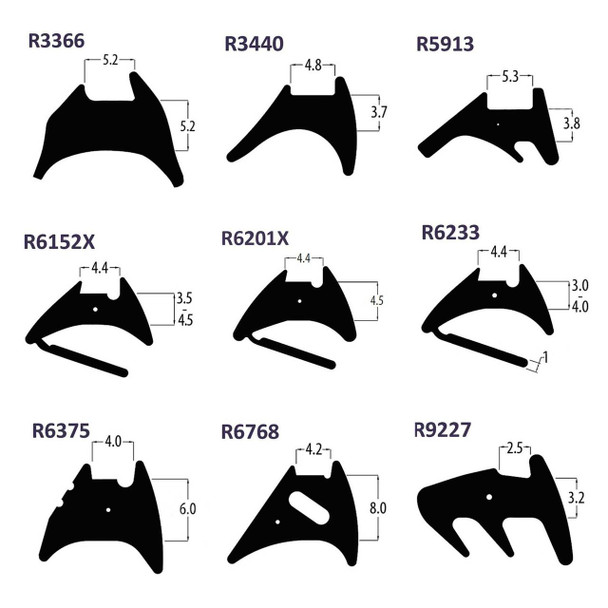

Material Profile Options:

• EPDM Profiles: R6152, R6201, R6233
• PVC Profiles: R9227
• TPR Profiles: R3366, R3440, R5913, R6375, R6768

Package Contents:

• 1 × Comprehensive gasket identification sheet
• 1 × R3366 gasket sample
• 1 × R3440 gasket sample
• 1 × R5913 gasket sample
• 1 × R6152 gasket sample
• 1 × R6201 gasket sample
• 1 × R6233 gasket sample
• 1 × R6375 gasket sample
• 1 × R6768 gasket sample
• 1 × R9227 gasket sample

Frequently Asked Questions:

How do I identify which wedge gasket I need from the sample pack?
Each gasket in the pack is numbered and corresponds to an enclosed identification sheet. Simply compare your existing gasket with the samples to find the closest match in size, shape and rigidity. The sheet provides the reference number you'll need when ordering the full-length gasket.

How difficult is it to replace a window or door wedge gasket?
Replacing wedge gaskets is a straightforward DIY task. Simply push the gasket into the gap between the glass and frame to create a secure, weathertight seal. Start at one corner and work around the perimeter, using a plastic tool to assist with installation if needed. No special tools are required.

Can I order specific lengths of the gaskets once I've identified the correct one?
Yes, once you've identified which gasket you need using the reference number on the identification sheet, you can order the exact length required from our store. We offer various standard lengths as well as custom-cut options for most profiles.

Are alternative colours available for these gaskets?
Yes, some of our wedge gasket profiles are available in alternative colours beyond the standard black. Once you've identified the correct profile for your needs, check our main product listings to see which colour options are available for that specific profile.

Why Choose Reddiplex Wedge Gasket Sample Pack?

Taking the guesswork out of gasket replacement, the Reddiplex sample pack represents excellent value for any DIY enthusiast looking to improve their home's comfort and energy efficiency. With professional-grade materials that meet British Standards, you can be confident that once you identify the correct gasket, your window and door seals will perform reliably for years to come. Investing in this sample pack today means avoiding costly mistakes and enjoying draught-free, weather-tight windows and doors tomorrow.
