Tubular Mortice Latch 2.5"- 64mm or 3"- 76mm

The ERA mortice tubular latch comes in two different sizes and finishes. The simple latch device is easy to fit and can be used with either lever handles or door knobs. They are suitable for internal timber door which have a thickness of 35-54mm.

Traditionally known as 2.5"(64mm) or 3"(76mm) latches these will cover most jobs where a tubular latch is required. Available in Brass or Zinc.

Features:

Simple latch for all internal doors
Body is morticed into the door
Can be used with lever or knob handles
Suitable for internal timber doors

What's in the pack?

1 x Selected Tubular Latch

1 x Striker Plate

4 x Screws

Dimensions: Tubular Latch 3"- 76mm

Latch body length (exc. faceplate): 76mm
Latch body height (exc. faceplate): 21.6mm
Latch body width (exc. faceplate): 15mm
Backset: 57mm
Faceplate height: 56.4mm
Faceplate width: 26mm
Faceplate depth: 1.4mm
Latch throw: 10mm
Latch height: 13.8mm
Latch width: 12mm
Spindle hole size: 8mm
Screw fixing centres: 42mm
To suit door thickness: 35-54mm
Material: Zinc or Brass

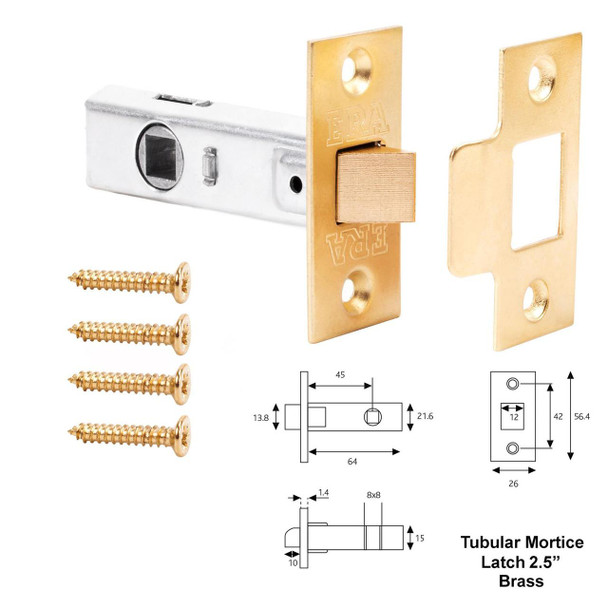

Dimensions: Tubular Latch 2.5"- 64mm

Latch body length (exc. faceplate): 64mm
Latch body height (exc. faceplate): 21.6mm
Latch body width (exc. faceplate): 15mm
Backset: 45mm
Faceplate height: 56.4mm
Faceplate width: 26mm
Faceplate depth: 1.4mm
Latch throw: 10mm
Latch height: 13.8mm
Latch width: 12mm
Spindle hole size: 8mm
Screw fixing centres: 42mm
To suit door thickness: 35-54mm
Material: Zinc or Brass

Please refer to individual diagrams for further detail - all measurements are approximate.

What measurements should I check before ordering a latch?

When buying a tubular latch for your door handle it is important to work out the correct size. Door handle latch sizes are usually advertised with their overall length, i.e. the case. To measure the overall length of the latch case measure from the faceplate to the end of the latch.

Important, please check the critical measurements in the diagrams in the gallery before ordering.
